(04-008) - ELECTRICAL ASSEMBLY (TWINE RUN AND BALE SWITCH) (MESH WRAP ONLY)

Запчасти Case IH RS561 (04-008) - ELECTRICAL ASSEMBLY (TWINE RUN AND BALE SWITCH) (MESH WRAP ONLY) (06) - ELECTRICAL

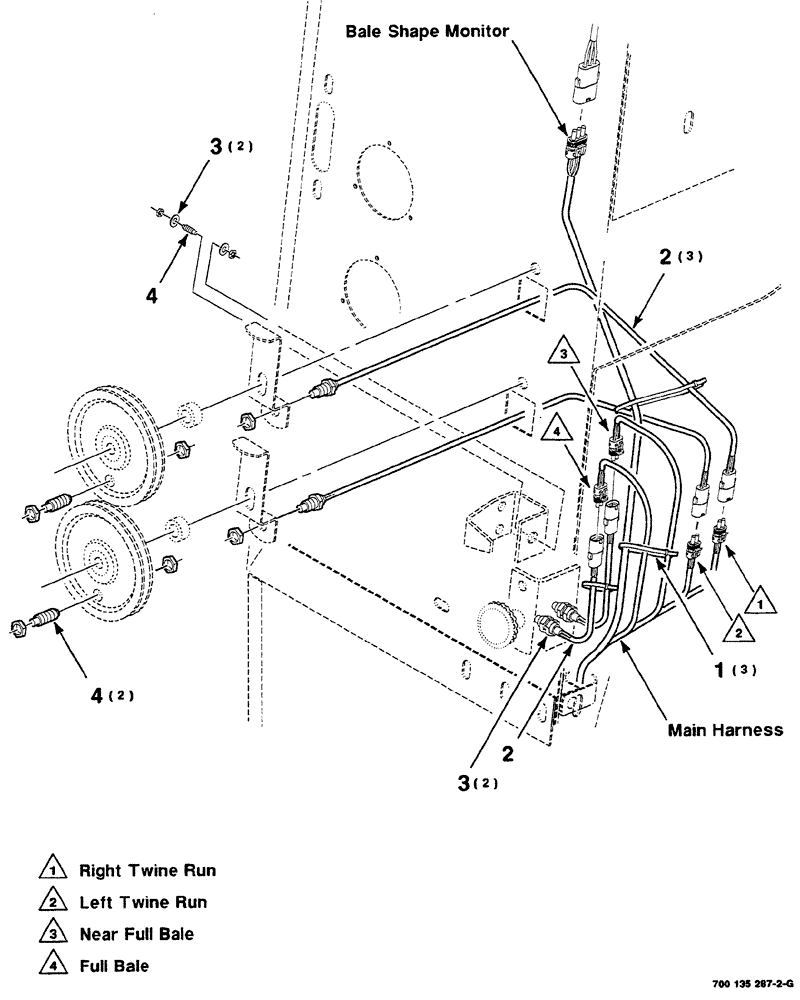

Схема запчастей Case IH RS561 - (04-008) - ELECTRICAL ASSEMBLY (TWINE RUN AND BALE SWITCH) (MESH WRAP ONLY) (06) - ELECTRICAL
4
2
2
3
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE

3шт.

2

700119161

SWITCH

sensor "A"

4шт.

3

700710190

WASHER

stainless steel

4шт.

4

700710211

ACTUATOR

ACTUATOR

3шт.

Выбрано товаров: 4
