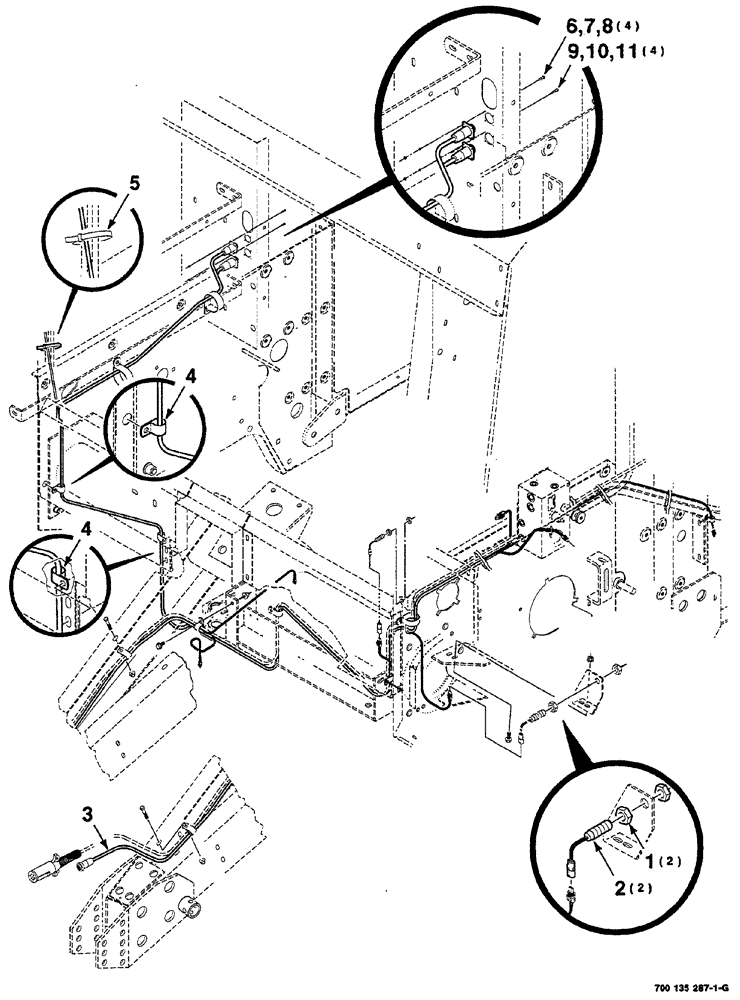

Запчасти Case IH RS561 (04-004) - ELECTRICAL ASSEMBLY - MAIN (WITH MESH WRAP) (06) - ELECTRICAL

1

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR. 2

2шт.

2

700706398

SENSOR

PTO

2шт.

3

700716052

HARNESS

main (with mesh wrap)

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE

1шт.

6

182-5

SCREW,Sl Pan Hd, #4 - 40 x 3/8"

4шт.

7

492-11004

LOCK WASHER,#4

4шт.

8

225-14104

NUT,#4-40

4шт.

9

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

GR. 60M

4шт.

10

492-11006

LOCK WASHER,#6

4шт.

11

225-14106

NUT,#6-32

4шт.
