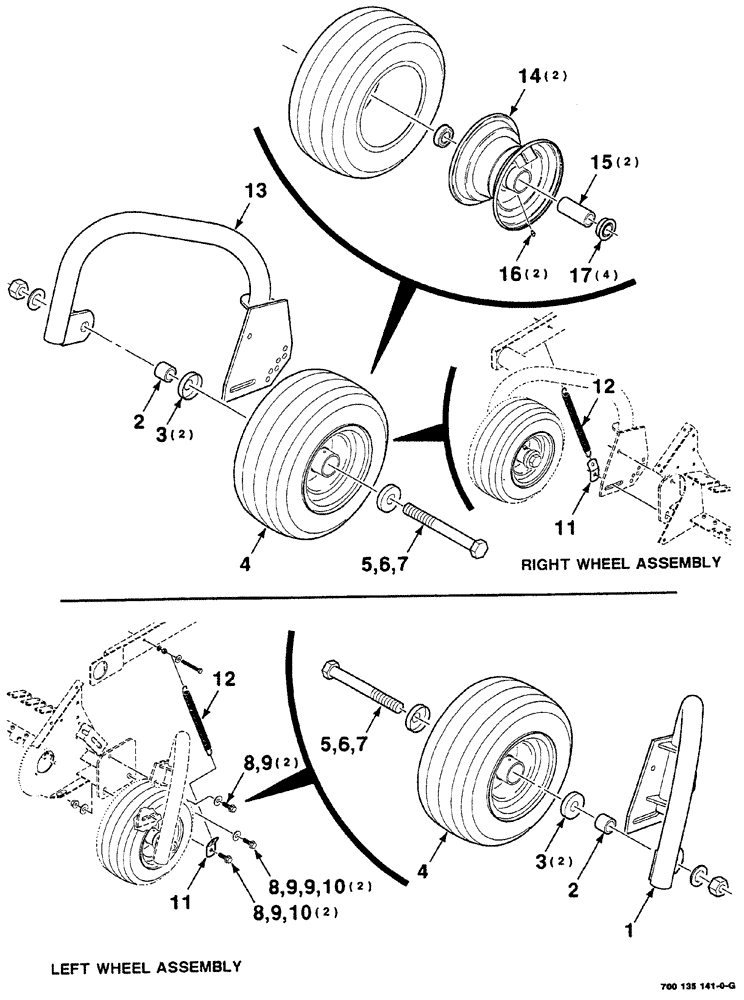

Запчасти Case IH RS561 (03-010) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Pickup

1

700147500

STRUT

WA left

1шт.

2

6651772

SPACER

2шт.

3

700127756

RING

grass

4шт.

4

700716366

WHEEL

ASSEMBLY (Includes: Ref. 14, 15, 16 and 17)

2шт.

5

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1-8 x 8

2шт.

6

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

7

232-41116

LOCK NUT,1"-8, GC

2шт.

8

8701237

BOLT

SCREW hex flange, 1/2-13 x 1-1/2 GR. 8

6шт.

9

700711557

WASHER

hardened wide plain, 1/2

8шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

4шт.

11

700150878

SPRING

tab

2шт.

12

700708977

SPRING

extension

2шт.

13

700147501

STRUT

WA right

1шт.

14

700716367

WHEEL

2шт.

15

700714562

SPACER

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

17

700714371

FLANGED BEARING

FLANGE

4шт.
