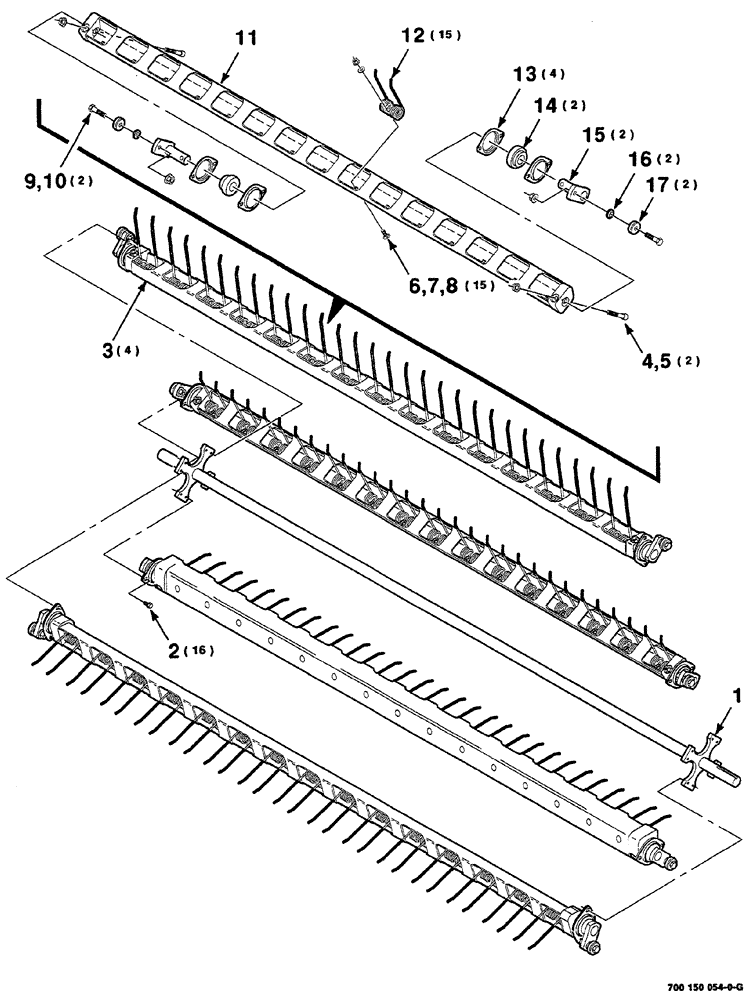

Запчасти Case IH RS561 (03-006) - PICKUP ROTOR ASSEMBLY Pickup

1

700150061

ROTOR

WA

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

3

700150055

BAR

TINE ASSEMBLY (Includes Ref. 4 Thru 17)

4шт.

4

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

hex socket head cap, 7/16-14 x 2-1/4 SPL

2шт.

5

704452

SPRING

hex flange top lock, 7/16-14 GR/G

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

15шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

15шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

15шт.

9

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

hex cap, 1/2-13 x 2 GR. 8

2шт.

10

700707867

NUT

hex flange top lock, 1/2-20 GR/G

2шт.

11

700150056

CHANNEL

WA TINE

1шт.

12

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

double (one bend - as equipped)

15шт.

12

700716132

TINE

double (two bends - as equipped)

15шт.

13

581469R1

FLANGE,Bearing

4шт.

14

700708095

SPHERICAL BEARING

2шт.

15

700135875

CRANK

WA

2шт.

16

700137750

SPACER

2шт.

17

700720050

CAM FOLLOWER

CAM follower

2шт.
