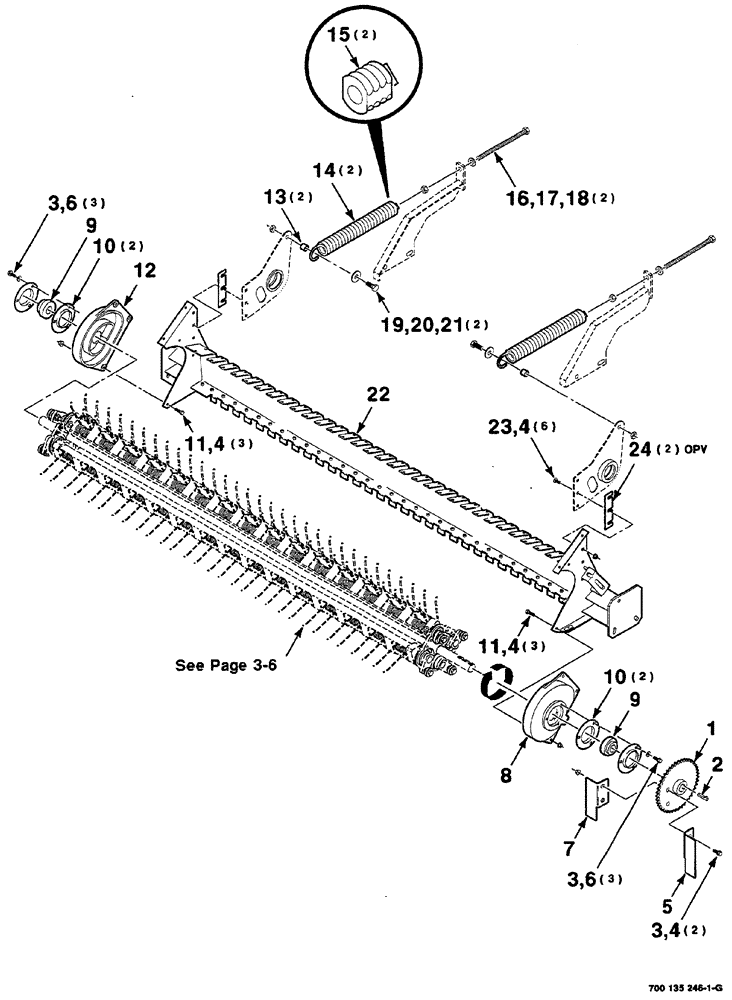

Запчасти Case IH RS561 (03-004) - PICKUP FRAME, FLOTATION AND SUPPORT ASSEMBLIES Pickup

1

700132129

SPROCKET ASSY.

WA 43 tooth

1шт.

2

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

gib, 5/16 x 1-1/2

1шт.

3

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

14шт.

5

700132130

SLINGER

outer

1шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

7

700132131

SLINGER

inner

1шт.

8

700137751

HOUSING ASSY.

CAMTRACK-left

1шт.

9

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

2шт.

10

617863R1

FLANGED BEARING

4шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

12

700116125

HOUSING

CAMTRACK-right

1шт.

13

159723

SPACER

2шт.

14

700150176

SPRING

ASSEMBLY (Includes: Ref. 15)

2шт.

15

700150150

PLUG

SPRING

2шт.

Part of ASSY., part number 700150176

1шт.

16

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

BOLT full thread hex, 5/8-11 x 10

2шт.

17

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

18

425-1010

NUT,5/8"-11, G5

2шт.

19

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

20

700711165

WASHER,17.3mm ID x 45.21mm OD x 4.06mm Thk

hardened wide plain, 5/8

2шт.

21

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HJN GR2

2шт.

22

700135813

FRAME

WA pickup

1шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

24

700132128

SHIM

2шт.
