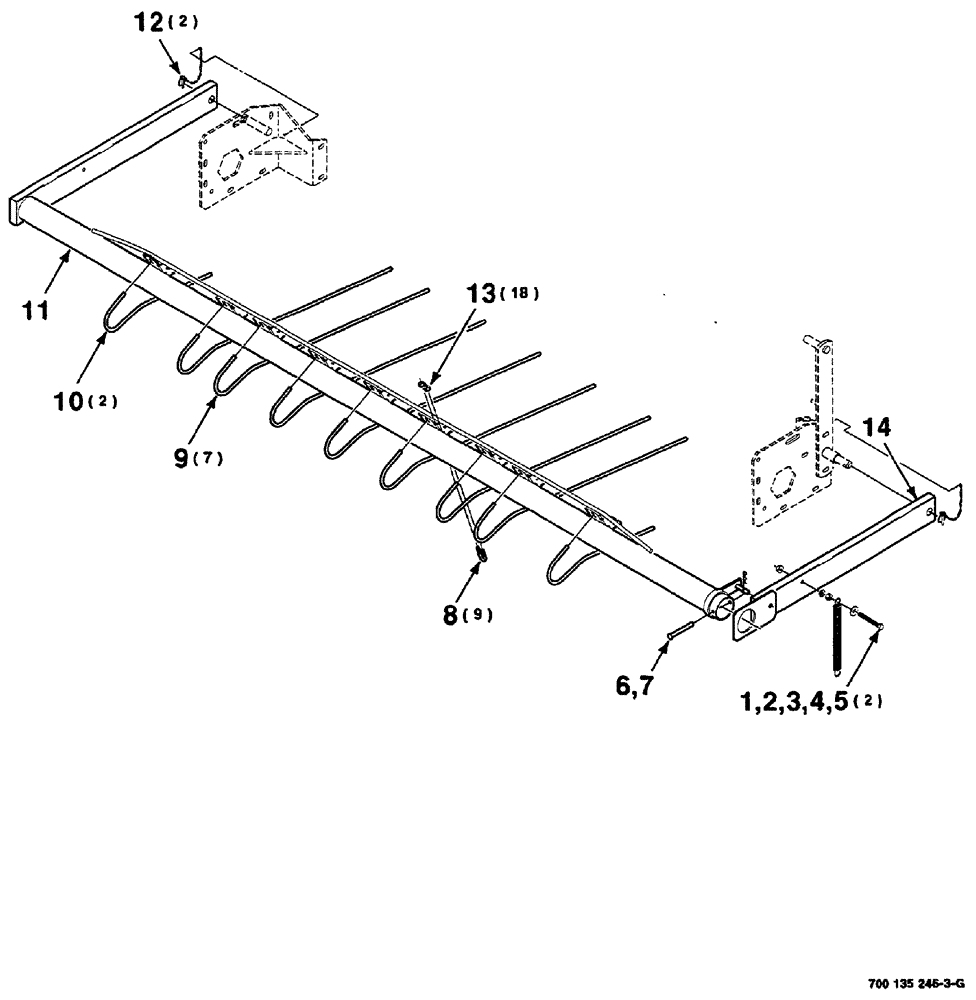

Запчасти Case IH RS561 (03-002) - WINDGUARD AND MOUNTING ASSEMBLY Pickup

1

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

2

496-81010

WASHER

hardened wide plain, 3/8

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

clevis, 3/8 x 3

1шт.

7

S120261

PIN

wire hair, cotter, .148

1шт.

8

700707707

BOLT,U, 5/16" - 18 x 1.181"

U, 5/16-18

9шт.

9

700717230

ROD

WINDGUARD, inner, Hooked

7шт.

9

700726705

ROD

WINDGUARD, inner, Non-Hooked

7шт.

10

700717255

ROD

WINDGUARD, outer, Hooked

2шт.

10

700726704

ROD

WINDGUARD, outer, Non-Hooked

2шт.

11

700135768

GUARD

WIND WA, Hooked

1шт.

11

700153754

GUARD ASSY.

WIND WA, Non-Hooked

1шт.

12

762260

PIN

klik

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

14

700150924

SUPPORT

WA

1шт.
