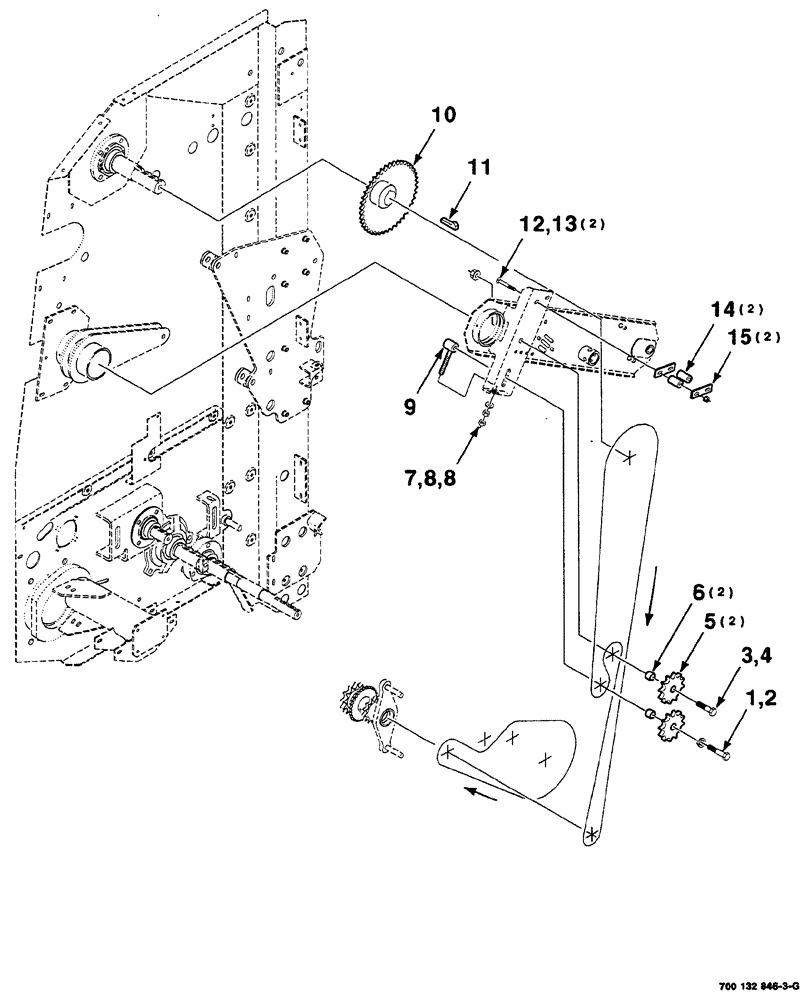

Запчасти Case IH RS561 (02-042) - ROLLER DRIVE ASSEMBLY (UPPER) S.N. CFH0156400 AND LATER Driveline

1

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

2

492-11062

BEARING WASHER,5/8"

1шт.

3

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

4

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

5

541857R92

SPROCKET,15T

IDLER-ASM, 60P15T

2шт.

6

6619274

BUSHING

SPACER

2шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

2шт.

9

700135548

SPECIAL BOLT

DRAW WA

1шт.

10

700135033

SPROCKET ASSY.

WA 60B42

1шт.

11

861088

BUCKET TOOTH KEY

gib, 1/2 x 2

1шт.

12

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

BOLT round head square neck, 3/8-16 x 3

2шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

14

700716908

GUIDE

CHAIN

2шт.

15

700716907

PLATE

guide

2шт.
