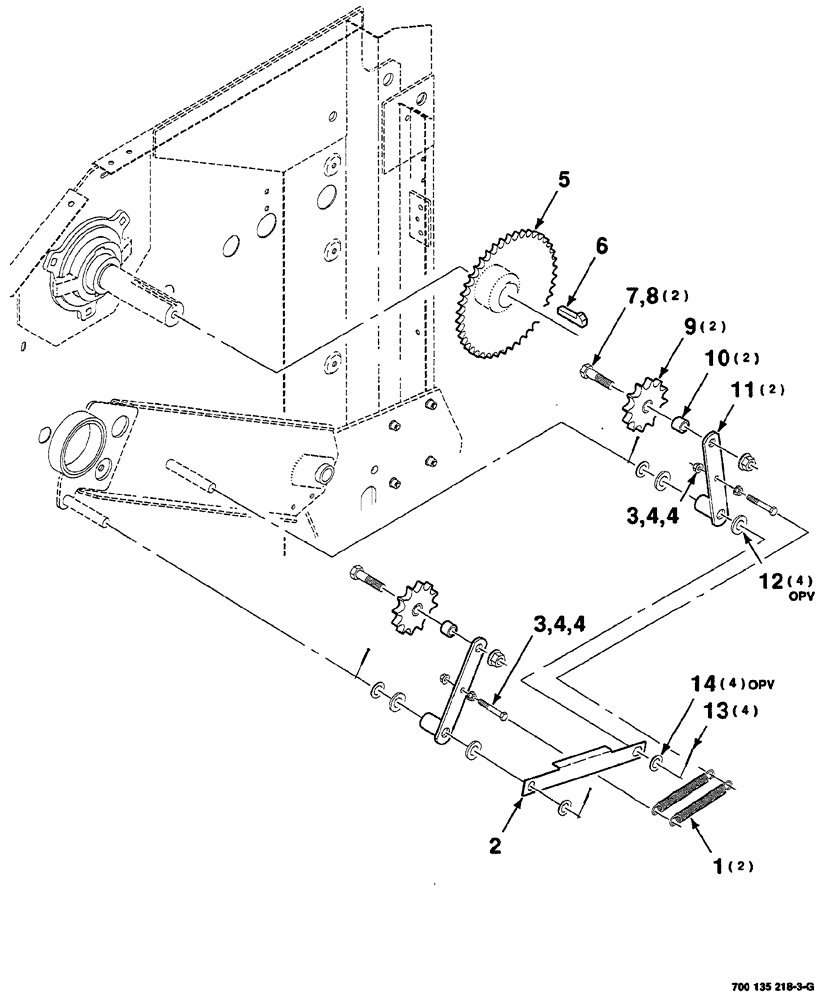

Запчасти Case IH RS561 (02-040) - ROLLER DRIVE ASSEMBLY (UPPER) S.N. CFH0156001 THRU CFH0156399 Driveline

1

700717556

SPRING

extension

2шт.

2

700151479

STOP

idler

1шт.

3

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

700135033

SPROCKET ASSY.

WA 42 tooth

1шт.

6

861088

BUCKET TOOTH KEY

gib, 1/2 x 2

1шт.

7

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

232-53110

FLANGE NUT,Flg, 5/8"-11

2шт.

9

541857R92

SPROCKET,15T

idler, 15 tooth

2шт.

10

50061K

SPACER,1" Tube x 3/4"

2шт.

11

700150107

ARM

WA idler

2шт.

12

705566

WASHER

hardened plain, 3/4

4шт.

13

432-1020

COTTER PIN,5/32" x 1 1/4"

4шт.

14

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

BUSHING narrow rim machinery, 3/4 x 14 gauge

4шт.
