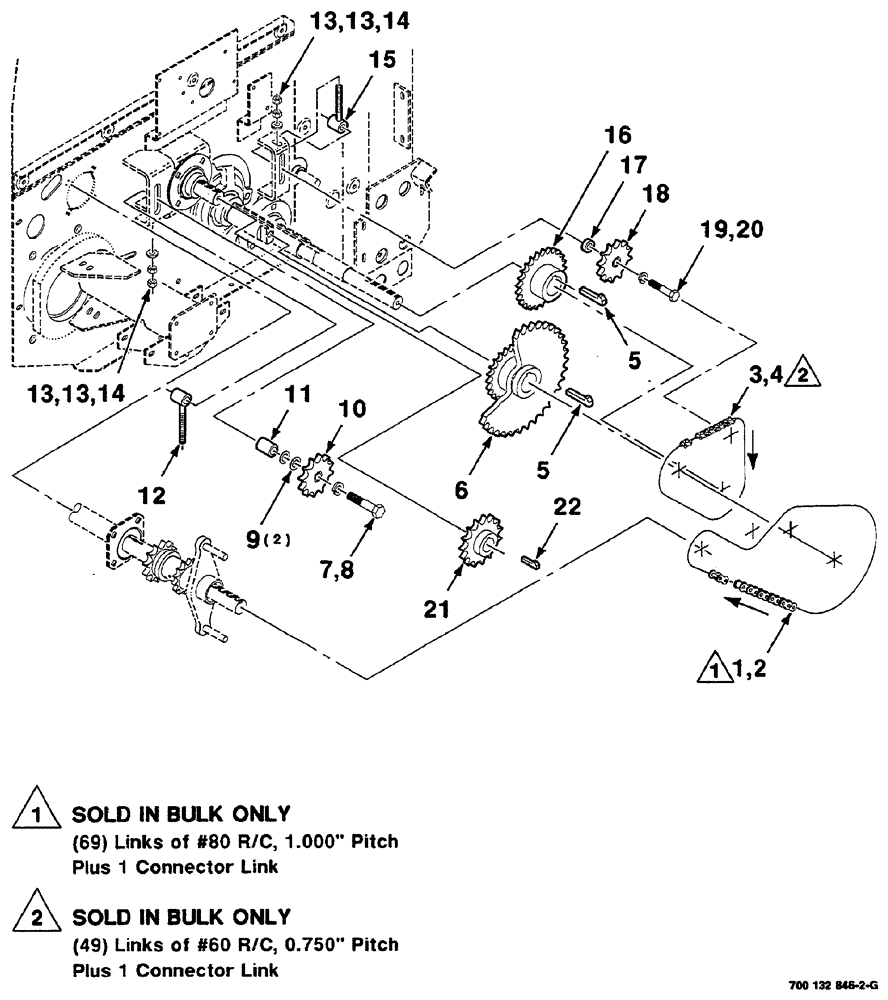

Запчасти Case IH RS561 (02-038) - ROLLER DRIVE ASSEMBLY (LOWER) S.N. CFH0156400 AND LATER Driveline

1

654437R91

CHAIN (AG)

roller, #80 (10 foot bulk)

1шт.

2

241-1418

SPRING CLIP

LINK connector, #80 R/C

1шт.

3

611362R91

CHAIN (AG)

roller, #60 (10 foot bulk)

1шт.

4

241-1316

LINK,19.05mm Pitch

connector, #60 R/C

1шт.

5

61747

KEY

gib, 1/2 x 2-1/2

2шт.

6

700150109

SPROCKET ASSY.

WA double, 23 and 36 tooth

1шт.

7

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

SCREW hex cap, 3/4-10 x 4-1/2

1шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

9

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

BUSHING narrow rim machinery, 3/4 x 14 gauge

2шт.

10

747931

DECAL

idler, 12 tooth

1шт.

11

700132976

SPACER

1шт.

12

700150105

SPECIAL BOLT

DRAW WA

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

15

700135548

SPECIAL BOLT

DRAW WA

1шт.

16

700150114

SPROCKET ASSY.

WA 25 tooth

1шт.

17

700110610

SPACER

1шт.

18

541857R92

SPROCKET,15T

idler, 15 tooth

1шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

20

492-11062

BEARING WASHER,5/8"

1шт.

21

700132988

SPROCKET ASSY.

WA 15 tooth

1шт.

22

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

1шт.
