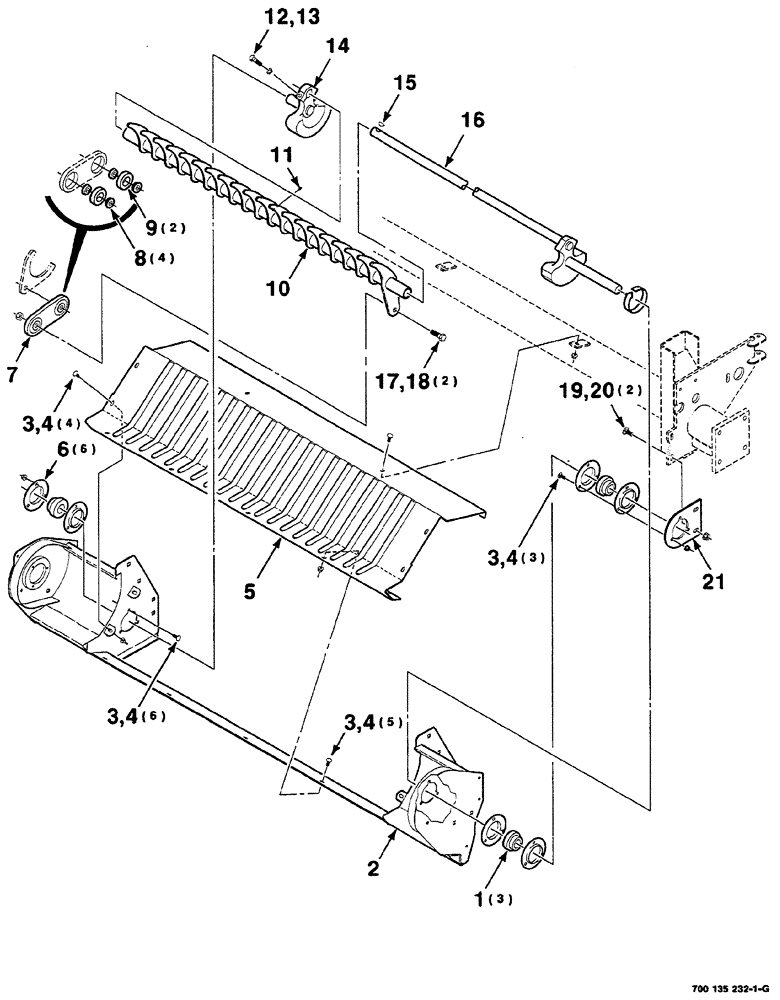

Запчасти Case IH RS561 (02-034) - STUFFER FRAME AND SUPPORT ASSEMBLIES Driveline

1

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

spherical

3шт.

2

700135712

FRAME

WA stuffer

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

18шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

18шт.

5

700135710

GRATE

1шт.

6

617863R1

FLANGED BEARING

6шт.

7

700132212

LINK

ASSEMBLY (Includes: Ref. 8 and 9)

1шт.

8

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

BEARING

4шт.

Part of ASSY., part number 700132212

1шт.

9

CAS

cylindrical

2шт.

Part of ASSY., part number 700132212

1шт.

10

700135732

SHAFT ASSY.

stuffer WA

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

14

700132088

CRANK

WA idler, right

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

16

700135729

CRANK

WA drive, left

1шт.

17

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

18

230-41110

LOCK NUT,5/8"-11, GA

hex top lock, 5/8-11 GR/B

2шт.

19

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

21

700135946

PLATE

1шт.
