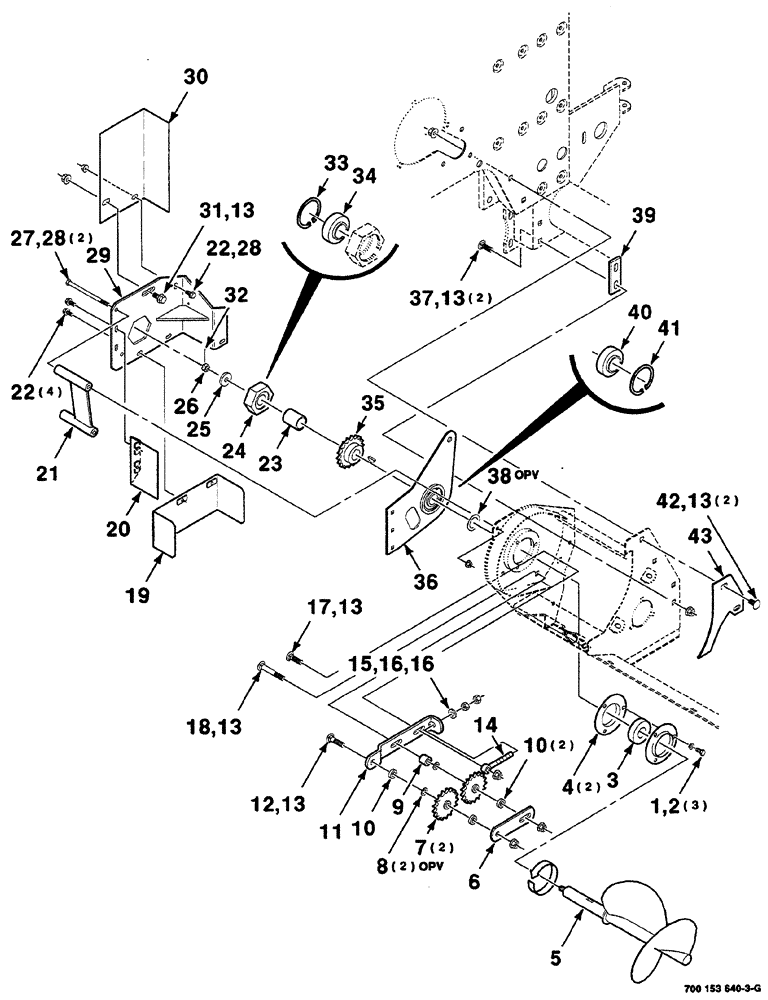

Запчасти Case IH RS561 (02-032) - STUFFER, AUGER AND DRIVE ASSEMBLIES (RIGHT) Driveline

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

COLLAR less

1шт.

4

617863R1

FLANGED BEARING

2шт.

5

700150090

AUGER

WA right

1шт.

6

700132765

STRAP

1шт.

7

700716888

SPROCKET ASSY.

idler

2шт.

8

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING narrow rim machinery, 1/2 x 18 gauge

2шт.

9

700150104

SPACER

1шт.

10

6582696

SPACER

3шт.

11

700153669

SUPPORT

1шт.

12

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT round head square neck, 1/2-13 x 2-1/2

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

8шт.

14

241018

BOLT

EYE

1шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

2шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

round head square neck, 1/2-13 x 1-3/4

1шт.

18

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

1шт.

19

700135742

SHIELD

WA right

1шт.

20

700150081

SHIELD

WA right

1шт.

21

700150079

SUPPORT

WA

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

23

6587869

SPACER

1шт.

24

700150087

HUB

ASSEMBLY (Includes: Ref. 33 and 34)

1шт.

25

6181994

WASHER

special

1шт.

26

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

27

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

hex, 3/8-16 x 6

2шт.

28

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

3шт.

29

700150073

SUPPORT

WA right

1шт.

30

700151504

SHIELD

1шт.

31

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

hex flange, 1/2-13 x 1 GR. 8

1шт.

32

432-816

COTTER PIN,1/8" x 1"

1шт.

33

100-21244

SNAP RING,2.44", Int, #244

1шт.

Part of Ref. 24, part number 700150087

1шт.

34

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

cylindrical

1шт.

Part of Ref. 24, part number 700150087

1шт.

35

700150100

SPROCKET ASSY.

WA 18 tooth

1шт.

36

700150097

SUPPORT

ASSEMBLY right (Includes: Ref. 40 and 41)

1шт.

37

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

38

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

BUSHING narrow rim machinery, 1-1/4 x 18 gauge

1шт.

39

700135747

PLATE

1шт.

40

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

cylindrical

1шт.

Part of Ref. 36, part number 700150097

1шт.

41

740415

RING, SNAP

RING SNAP retaining

1шт.

Part of Ref. 36, part number 700150097

1шт.

42

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

43

700135748

PLATE

1шт.
