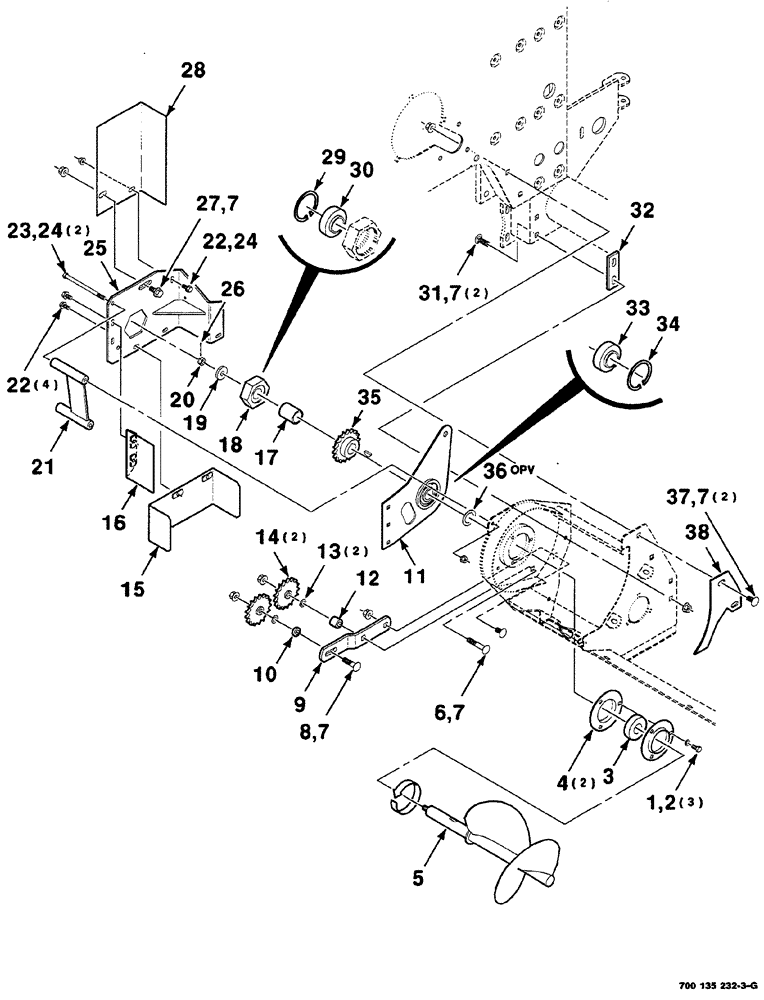

Запчасти Case IH RS561 (02-028) - STUFFER, AUGER AND DRIVE ASSEMBLIES (RIGHT) Driveline

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

COLLAR less

1шт.

4

617863R1

FLANGED BEARING

2шт.

5

700150090

AUGER

WA-right

1шт.

6

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT round head square neck, 1/2-13 x 2-3/4

1шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

7шт.

8

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT round head square neck, 1/2-13 x 2

1шт.

9

700150076

SUPPORT

1шт.

10

6582696

SPACER

1шт.

11

700150097

SUPPORT

ASSEMBLY right (Includes: Ref. 33 and 34)

1шт.

12

700150104

SPACER

1шт.

13

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING narrow rim machinery, 1/2 x 18 gauge

2шт.

14

700716888

SPROCKET ASSY.

idler, 17 tooth

2шт.

15

700135742

SHIELD

WA right

1шт.

16

700150081

SHIELD

WA right

1шт.

17

6587869

SPACER

1шт.

18

700150087

HUB

ASSEMBLY (Includes: Ref. 29 and 30)

1шт.

19

6181994

WASHER

special

1шт.

20

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

21

700150079

SUPPORT

WA

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

23

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

hex, 3/8-16 x 6

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

3шт.

25

700150073

SUPPORT

WA right

1шт.

26

432-816

COTTER PIN,1/8" x 1"

1шт.

27

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

hex flange, 1/2-13 x 1 GR8

1шт.

28

700151504

SHIELD

1шт.

29

100-21244

SNAP RING,2.44", Int, #244

1шт.

Part of Ref.18, part number 700150087

1шт.

30

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

cylindrical

1шт.

Part of Ref.18, part number 700150087

1шт.

31

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

32

700135747

PLATE

1шт.

33

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

cylindrical

1шт.

Part of Ref. 11, part number 700150097

1шт.

34

740415

RING, SNAP

RING SNAP retaining

1шт.

Part of Ref. 11, part number 700150097

1шт.

35

700150100

SPROCKET ASSY.

WA 18 tooth

1шт.

36

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

BUSHING narrow rim machinery, 1-1/4 x 18 gauge

1шт.

37

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

38

700135748

PLATE

1шт.
