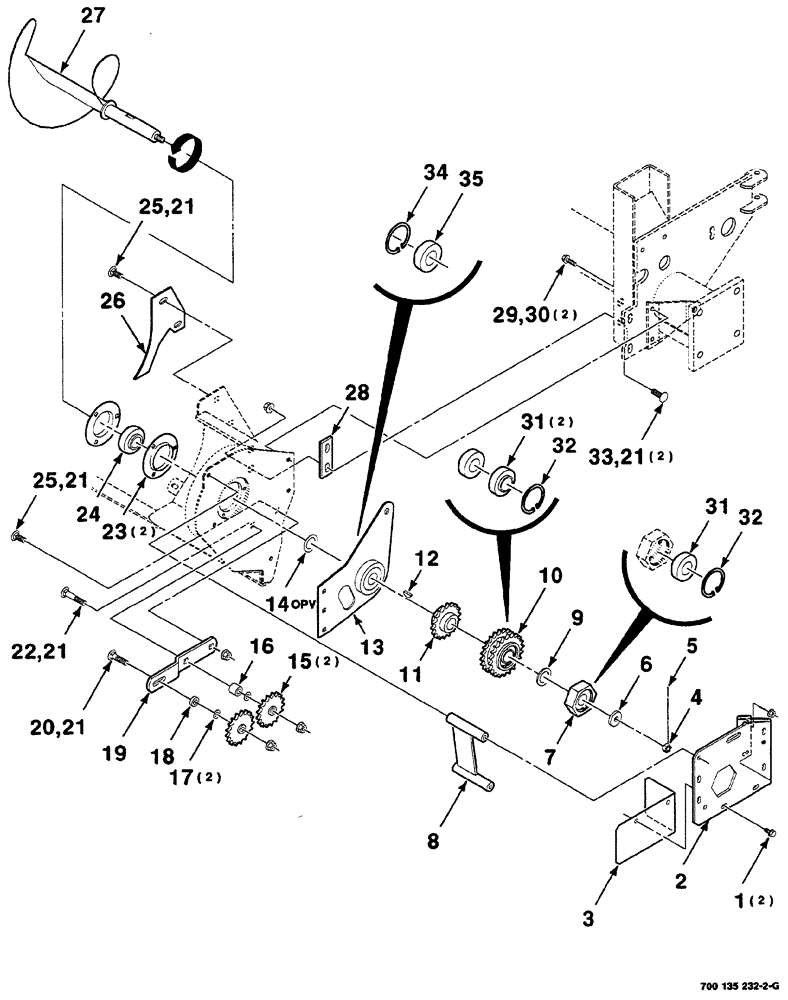

Запчасти Case IH RS561 (02-026) - STUFFER, AUGER AND DRIVE ASSEMBLIES (LEFT) Driveline
№
Артикул
Название
Примечание
Количество
1
409-7612
BOLT,3/8"-16 x 1.09" OAL
2шт.
2
700150070
SUPPORT
WA left
1шт.
3
700135740
SHIELD
WA left
1шт.
4
425-138
SLOTTED NUT,1/2"-20, G8
1шт.
5
432-816
COTTER PIN,1/8" x 1"
1шт.
6
6181994
WASHER
special
1шт.
7
700150087
HUB
ASSEMBLY
1шт.
8
700150079
SUPPORT
WA left
1шт.
9
52324
BUSHING
narrow rim machinery, 1-1/4 x 10 gauge
1шт.
10
700150083
SPROCKET ASSY.
22-22 tooth
1шт.
11
700150100
SPROCKET ASSY.
WA 18 tooth
1шт.
12
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
13
700150092
SUPPORT
ASSEMBLY, left (Includes: Ref. 34 & 35)
1шт.
14
495-81205
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
BUSHING narrow rim machinery, 1-1/4 x 18 gauge
1шт.
15
700716888
SPROCKET ASSY.
idler, 17tooth
2шт.
16
700150104
SPACER
1шт.
17
95-81100
WASHER,33/64" x 7/8" x .049"
BUSHING narrow rim machinery, 1/2 x 18 gauge
2шт.
18
6582696
SPACER
1шт.
19
700150076
SUPPORT
1шт.
20
433-832
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5
BOLT round head square neck, 1/2-13 x 2
1шт.
21
231-5348
FLANGE NUT,Flg, 1/2"-13
hex flange top lock, 1/2-13 GR/G
6шт.
22
591514R1
CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5
BOLT round head square neck, 1/2-13 x 2-3/4
1шт.
23
617863R1
FLANGED BEARING
2шт.
24
565672R92
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
COLLAR less
1шт.
25
433-820
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
2шт.
26
700135748
PLATE
1шт.
27
700150089
AUGER
WA left
1шт.
28
700135747
PLATE
1шт.
29
121-237
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
hex flange, 3/8-16 x 1-1/4 GR. 8
2шт.
31
586649R92
BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W
cylindrical
3шт.
33
433-824
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
2шт.
34
740415
RING, SNAP
RING SNAP retaining
1шт.
Part of Ref. 13, part number 700150092
1шт.
35
587015R92
BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W
cylindrical
1шт.
Part of Ref. 13, part number 700150092
1шт.
Выбрано товаров: 37
