(02-018) - CLUTCH MOUNTING ASSEMBLY

Запчасти Case IH RS561 (02-018) - CLUTCH MOUNTING ASSEMBLY Driveline

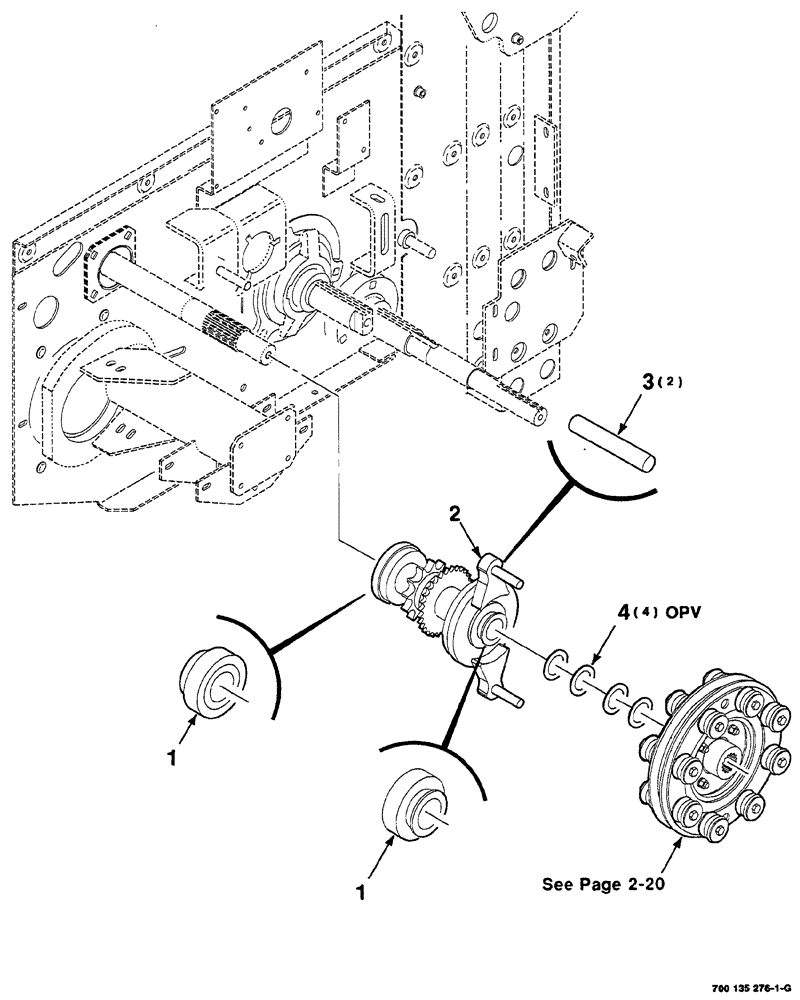

Схема запчастей Case IH RS561 - (02-018) - CLUTCH MOUNTING ASSEMBLY Driveline
2
3
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

cylindrical

2шт.

2

700132677

HUB

ASSEMBLY (Includes: Ref. 1 and 3)

1шт.

3

700712511

DOWEL

PIN, 5/8 x 3-1/2

2шт.

4

51200382

BUSHING

narow rim machinery, 1-1/2 x 14 gauge

4шт.

Выбрано товаров: 4
