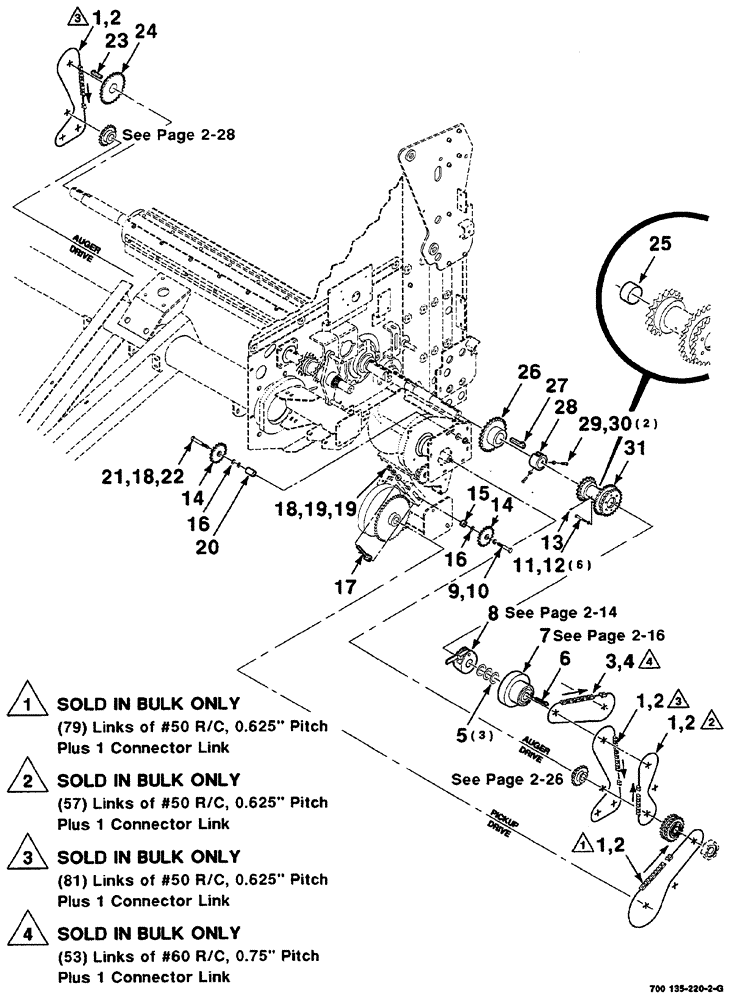

Запчасти Case IH RS561 (02-012) - PICKUP AND AUGER DRIVE ASSEMBLY Driveline

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

roller, #50 (10 foot bulk)

4шт.

2

241-1315

LINK, CONNECTING

#50 R/C

4шт.

3

7086002

CHAIN (AG)

roller, #60 (10 foot bulk)

1шт.

4

241-1316

LINK,19.05mm Pitch

connector, #60 R/C

1шт.

5

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

BUSHING narrow rim machinery, 1-3/8 x 14 gauge

3шт.

6

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

1шт.

7

700133291

CLUTCH

ASSEMBLY

1шт.

8

700134911

HUB

ASSEMBLY

1шт.

9

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW hex cap, 1/2-13 x 2-3/4

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

12

492-11031

LOCK WASHER,5/16"

6шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

700716888

SPROCKET ASSY.

idler, 17 tooth

2шт.

15

6537526

SPACER

1шт.

16

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

BUSHING narrow rim machinery, 1/2 x 14 gauge

2шт.

17

700147510

SPECIAL BOLT

DRAW WA-plated

1шт.

18

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

2шт.

20

6234710

SPACER

1шт.

21

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

1шт.

23

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

1шт.

24

700150117

SPROCKET ASSY.

WA 27 tooth

1шт.

25

700715085

BRONZE BUSHING

bronze

1шт.

Part of Ref. 31, part number 700717790

1шт.

26

700150114

SPROCKET ASSY.

WA 25 tooth

1шт.

27

61747

KEY

gib, 1/2 x 2-1/2

1шт.

28

700135556

SPACER

1шт.

29

83-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

cup point hex socket, 3/8-16 x 5/8 NP

2шт.

30

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

31

700717790

SPROCKET ASSY.

WA 17, 27, 24 tooth (Includes: Ref. 25)

1шт.
