(02-010) - U-JOINT ASSEMBLY (DOUBLE)

Запчасти Case IH RS561 (02-010) - U-JOINT ASSEMBLY (DOUBLE) Driveline

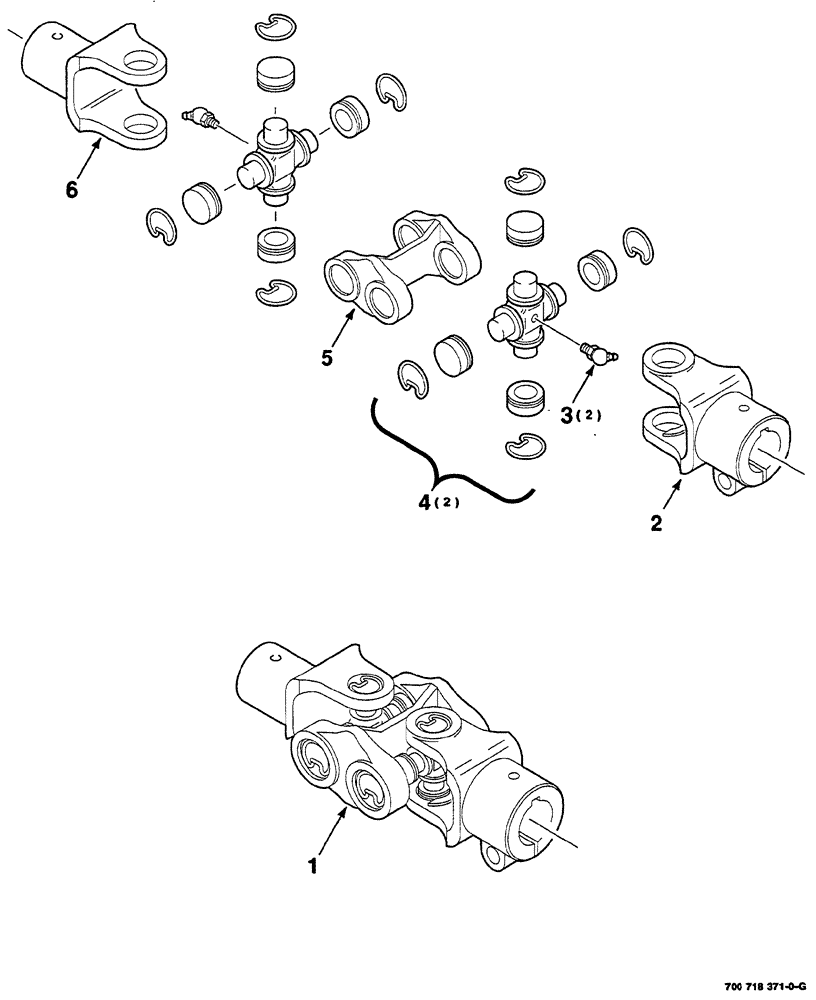

Схема запчастей Case IH RS561 - (02-010) - U-JOINT ASSEMBLY (DOUBLE) Driveline
1
5
2
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718371

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY COMPLETE

1шт.

2

816025

YOKE

UNIVERSAL JOINT YOKE clamp

1шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

2шт.

Part of KIT, part number 845198

1шт.

4

845198

KIT

cross and bearing (Includes: Ref. 3)

2шт.

5

700718388

YOKE

UNIVERSAL JOINT YOKE double

1шт.

6

810812

YOKE

PTO

1шт.
