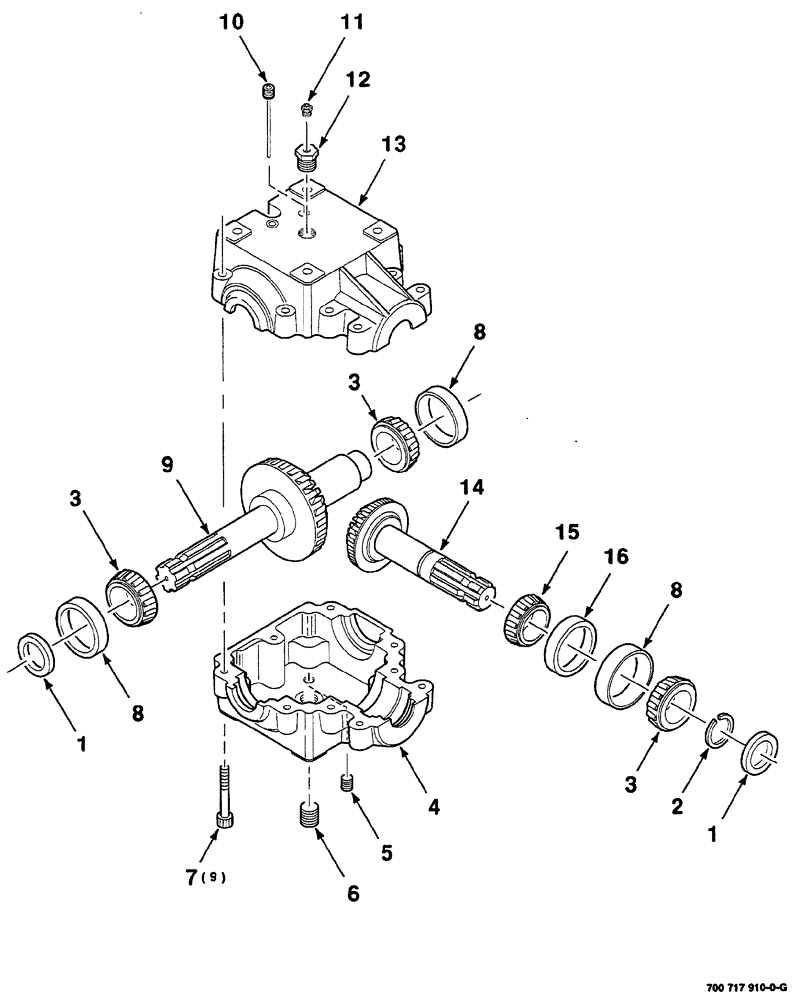

Запчасти Case IH RS561 (02-008) - GEARBOX ASSEMBLY Driveline

1

700710827

SEAL

2шт.

2

700710828

OIL SEAL

RING retaining

1шт.

3

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

tapered

3шт.

4

700710824

CASTING

(thru holes)

1шт.

5

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Solid

1шт.

7

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

hex socket head, 3/8-16 x 2-1/4

9шт.

8

710350

BRACKET,69.037 mm OD x 15.875 mm

BEARING

3шт.

9

700718137

GEAR SHAFT

ASSEMBLY cross

1шт.

10

700710819

DIPSTICK

1шт.

11

700710818

VALVE

breather

1шт.

12

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

BUSHING reducer, national pipe taper, thread, 1/2-1/8

1шт.

13

700710825

CASTING

(tapped holes)

1шт.

14

700718136

GEAR SHAFT

ASSEMBLY pinion

1шт.

15

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

tapered

1шт.

16

165964R1

BEARING CUP

1шт.
