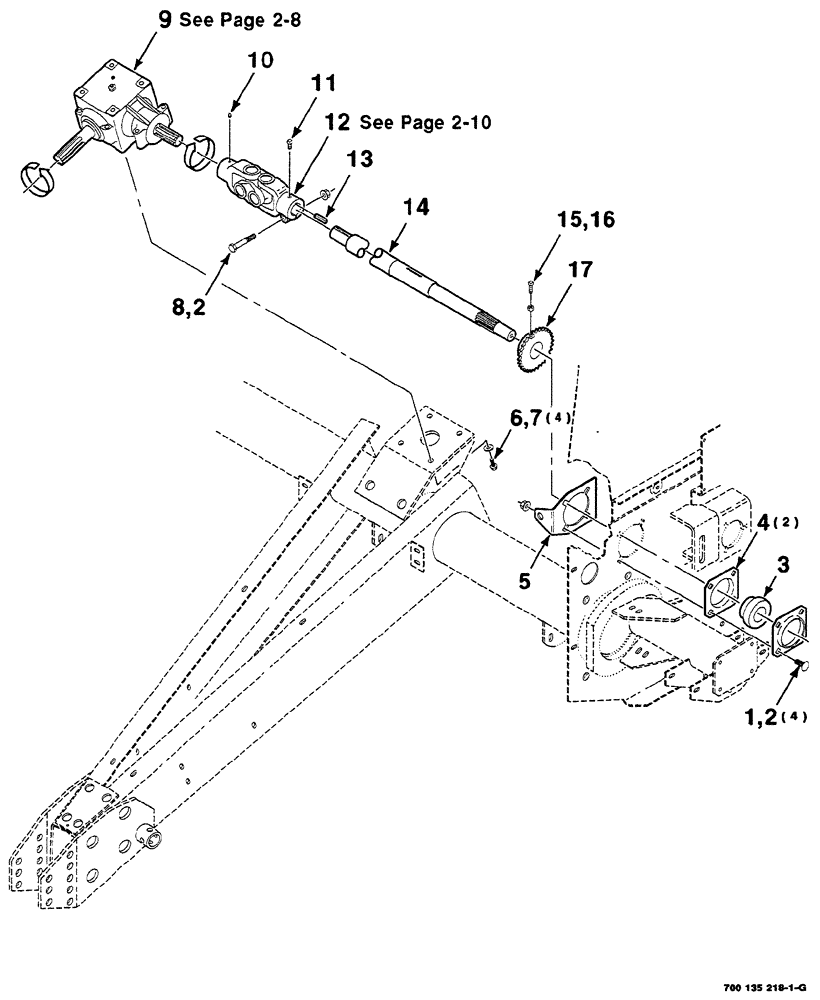

Запчасти Case IH RS561 (02-006) - MAIN DRIVE ASSEMBLY Driveline

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

5шт.

3

51318

BEARING

spherical

1шт.

4

76079C1

FLANGE

bearing

2шт.

5

700151463

SUPPORT

1шт.

6

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

4шт.

7

700711557

WASHER

hardened wide plain, 1/2

4шт.

8

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

9

700717910

GEARBOX ASSY

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

Cup Pt

1шт.

12

700718371

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY-double

1шт.

13

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

14

700150007

SHAFT

drive

1шт.

15

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cup point

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

700151466

SPROCKET ASSY.

WA-30 tooth

1шт.
