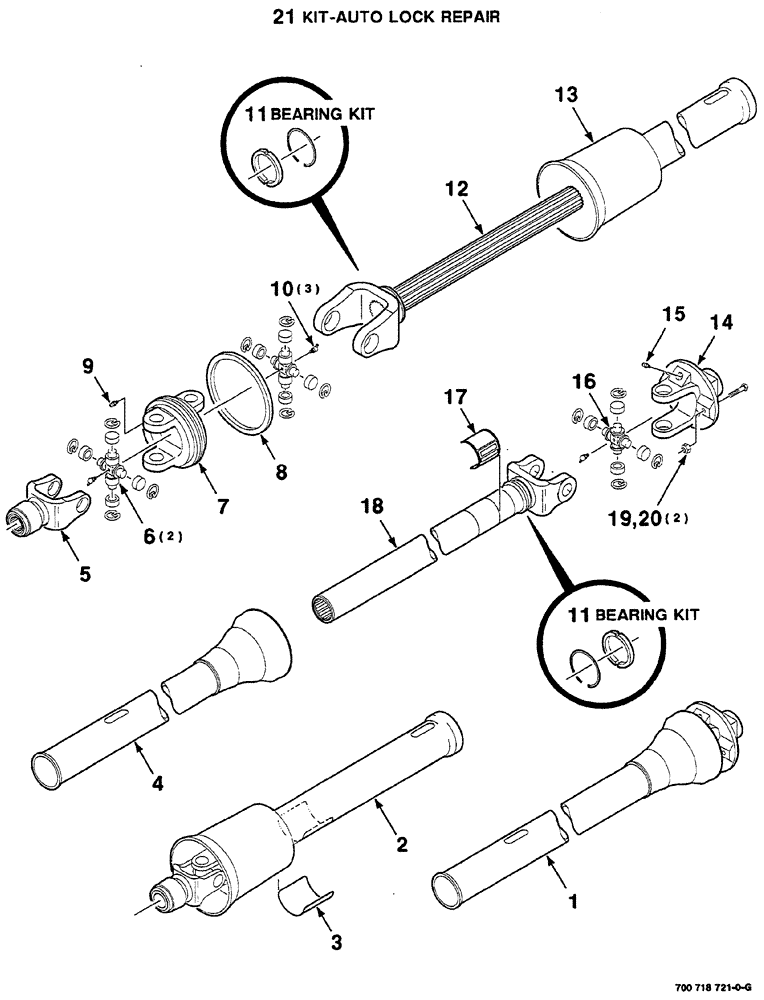

Запчасти Case IH RS561 (02-002) - IMPLEMENT DRIVELINE ASSEMBLY (540 RPM) Driveline

1

700718724

YOKE

UNIVERSAL JOINT YOKE half, implement w/guard

1шт.

2

700718723

YOKE

UNIVERSAL JOINT YOKE half, tractor w/guard, 540 RPM (1-3/8-6 spline)

1шт.

3

80672C1

DECAL

danger, PTO

1шт.

4

700718733

SHIELD

inner

1шт.

5

700718727

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY (1-3/8-6 spline)-540 RPM

1шт.

6

700718728

KIT

cross and bearing

2шт.

7

700718729

HOUSING

center

1шт.

8

700718730

BELL HOUSING

extension (with nylon centralizer)

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK, 1/8-27 x 65°

3шт.

11

700712735

SPACER

KIT and retainer

2шт.

12

700718731

YOKE

UNIVERSAL JOINT YOKE and shaft

1шт.

13

700718732

SHIELD

outer

1шт.

14

700718736

SHEARS

ASSEMBLY (free motion ball)

1шт.

15

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

16

845198

KIT

cross and bearing

1шт.

17

1326528C1

DECAL

danger

1шт.

18

700718735

YOKE

UNIVERSAL JOINT YOKE tube and sleeve

1шт.

19

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

20

231-4115

NUT,5/16"-18, GB

hex top, 5/16-18 GRC CW

2шт.

21

700720122

REPAIR KIT

auto lock repair

1шт.
