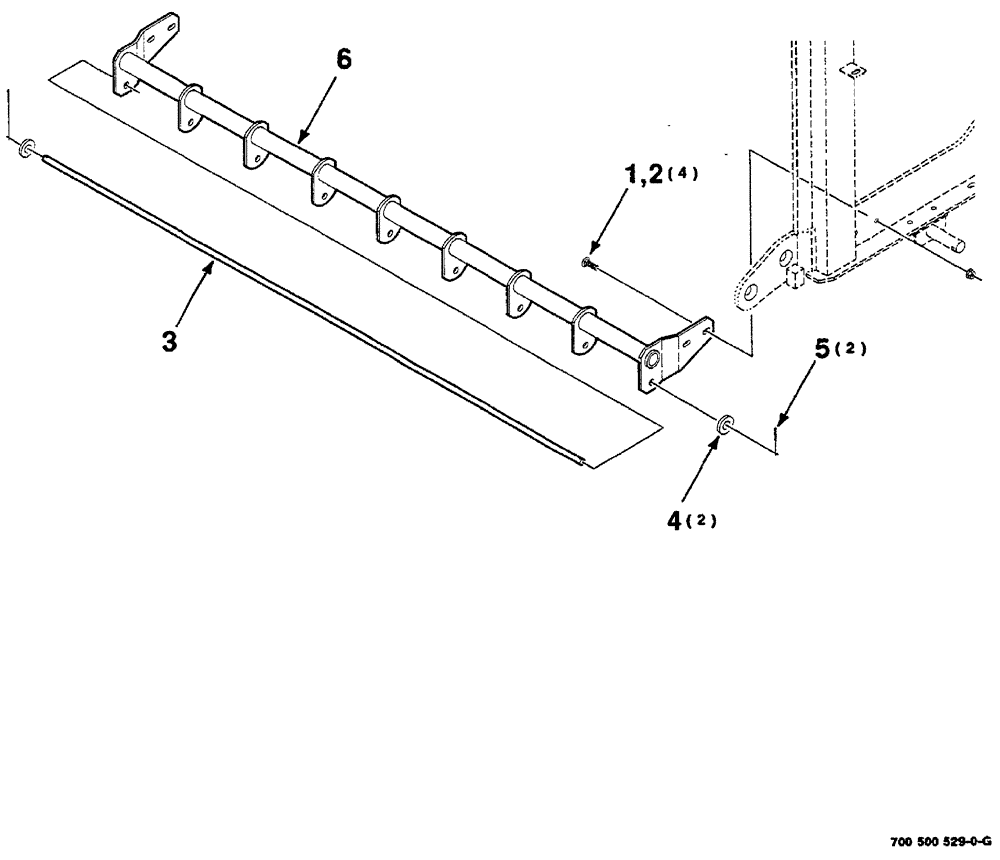

Запчасти Case IH RS561 (09-036) - BELT GUIDE KIT Decals & Attachments

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

4шт.

3

700132788

ROD

1шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

5

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

6

700132782

GUIDE

WA lower

1шт.
