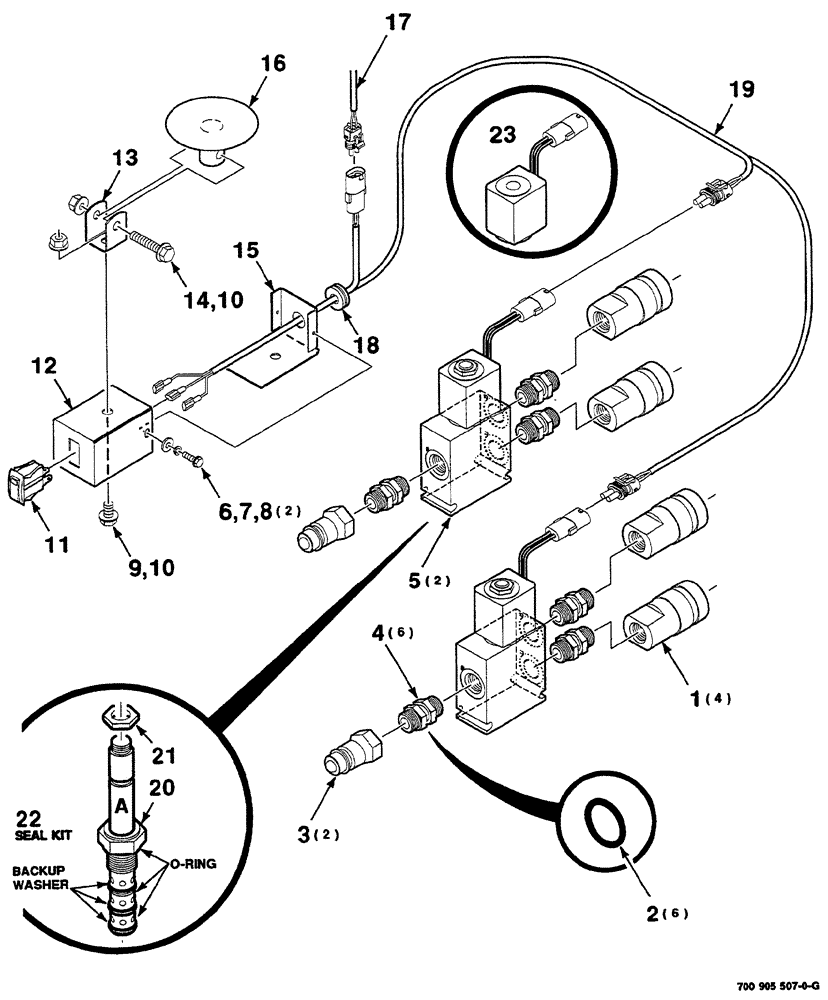

Запчасти Case IH RS561 (09-034) - HYDRAULIC TRACTOR REMOTE KIT Decals & Attachments

HK51001

KIT hydraulic tractor remote, complete

1шт.

1

700719352

COUPLING

half, female

4шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

3

700703886

COUPLING

half, male

2шт.

4

700713197

FITTING

hydraulic

6шт.

5

700719354

SHUT-OFF VALVE

tractor remote (Includes: Ref. 20, 21, 22 & 23)

2шт.

6

7884331

SCREW

hex washer head thread cutting tapping, #10-32 x 1/2

2шт.

7

492-11010

LOCK WASHER,#10

2шт.

8

495-31022

WASHER,#10

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

2шт.

11

700714799

SWITCH

rocker

1шт.

12

700132706

SUPPORT

MOUNT switch

1шт.

13

700132408

MOUNTING PARTS

1шт.

14

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

hex flange serrated, 5/16-18 x 1-1/2

1шт.

15

700132707

SUPPORT

MOUNT

1шт.

16

700714802

CUP

suction

1шт.

17

700719539

HARNESS

wire

1шт.

18

727768

GROMMET

1шт.

19

700719353

HARNESS

wire

1шт.

20

700706610

CARTRIDGE

CARTRIDGE

1шт.

21

700706151

NUT

hex

1шт.

22

700707215

SEAL KIT

seal

1шт.

23

700720041

SOLENOID

12V

1шт.
