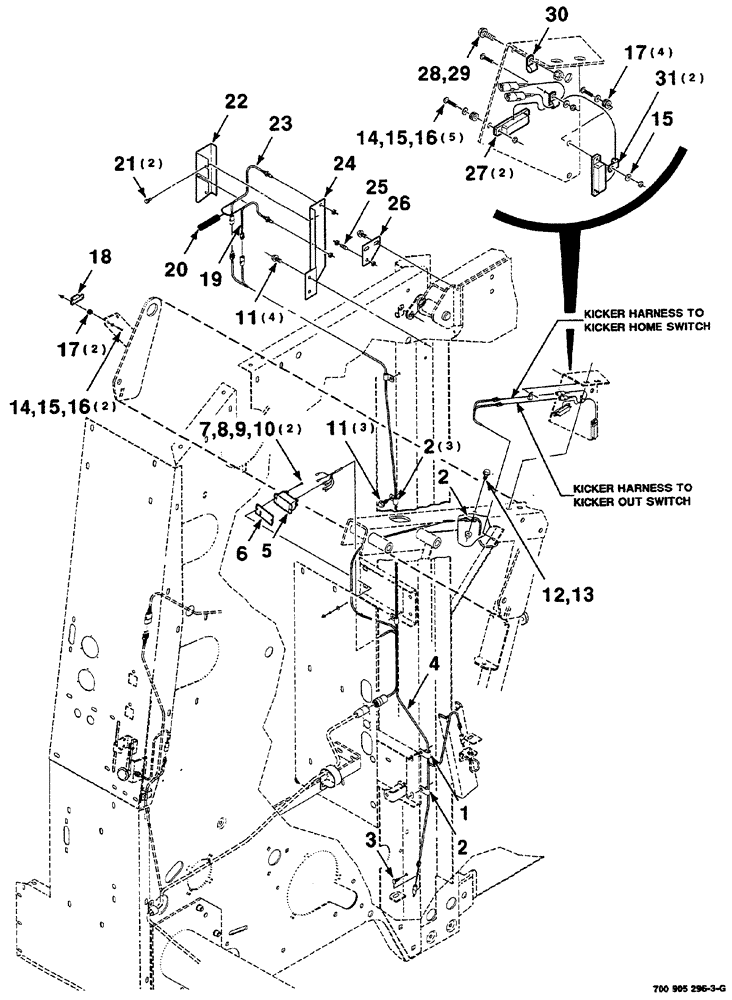

Запчасти Case IH RS561 (09-030) - BALE KICKER KIT - ELECTRICAL ASSEMBLY Decals & Attachments

1

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line

5шт.

3

700718506

CLIP

plastic, barbed

1шт.

4

700716058

HARNESS

wire, kicker (without mesh wrap)

1шт.

5

700716828

RELAY

electrical

1шт.

6

700718448

GASKET

relay

1шт.

7

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

8

495-21019

WASHER,#8

2шт.

9

492-11008

LOCK WASHER,#8

2шт.

10

225-14108

NUT,#8-32

hex, GR. 2 #8-32

2шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

hex washer head thread cutting tapping, 3/8-16 x 3/4

7шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

1шт.

14

700710188

SCREW

cross recess pan head machine, #6-32 x 3/4 (stainless)

7шт.

15

700710187

WASHER

plain, special, #6

8шт.

16

700710189

LOCK NUT

light hex stop, #6-32 (stainless)

7шт.

17

700710199

GROMMET

6шт.

18

700709996

SWITCH

ACTUATOR

1шт.

19

700718012

SWITCH

ASSEMBLY (N.C.)

1шт.

20

702400102

CONDUIT

split

1шт.

21

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

700150915

SHIELD

1шт.

23

700119161

SWITCH

ASSEMBLY (N.O.)

1шт.

24

700150916

MOUNTING PARTS

switch

1шт.

25

700710211

ACTUATOR

ACTUATOR

1шт.

26

700135943

MOUNTING PARTS

ACTUATOR

1шт.

27

700710208

ROTARY SWITCH

(N.O.)

2шт.

28

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

hex washer head machine, 1/4-20 x 3/4

1шт.

29

1703354

NUT

hex flange top lock, 1/4-20 GR/G

1шт.

30

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

31

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line

2шт.
