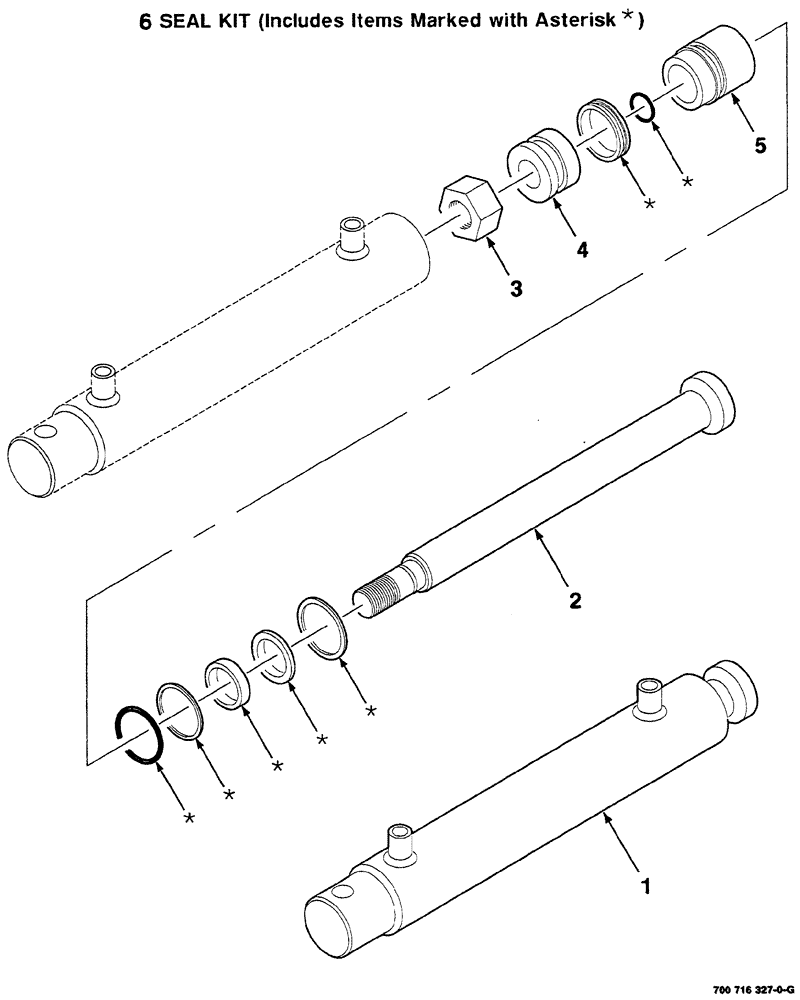

Запчасти Case IH RS561 (09-024) - HYDRAULIC CYLINDER ASSEMBLY (PICKUP LIFT) (1-1/2 INCH BORE X 7-1/4 INCH STROKE) Decals & Attachments

1

700716327

CYLINDER

hydraulic ASM. complete (1-1/2 inch bore x 7-1/4 inch stroke)

1шт.

2

700716691

ROD

piston

1шт.

3

700707412

LOCK NUT

3/4-16

1шт.

4

700716690

PISTON

1шт.

5

700716692

GUIDE

piston

1шт.

6

700716693

KIT

seal and O-ring repair, includes items in art marked with asterisk

1шт.
