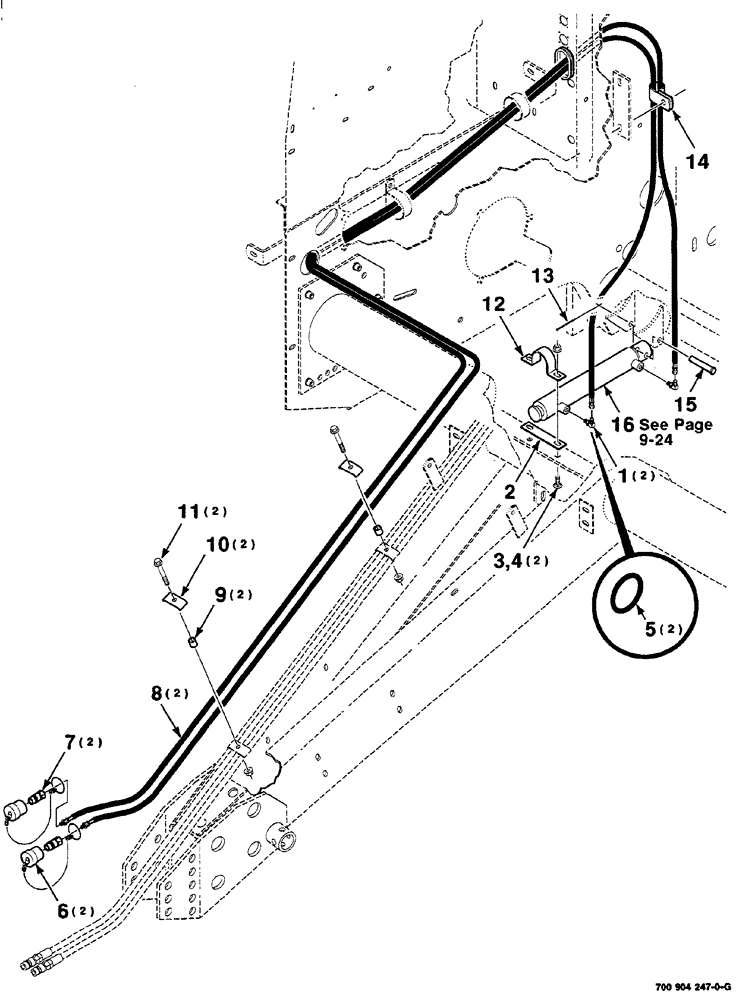

Запчасти Case IH RS561 (09-022) - HYDRAULIC PICKUP LIFT KIT (TO BE ORDERED THRU WHOLEGOODS ONLY) Decals & Attachments

HK50920

KIT hydraulic pickup lift, complete

1шт.

1

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90° (Includes: Ref. 5)

2шт.

2

700150179

SPACER

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

6

700718082

CAP

dust

2шт.

7

1-7141

FITTING

COUPLER quick disconnect

2шт.

8

700716328

HYDRAULIC HOSE,0.25" ID x 216.54", SAE J516, SAE J343

hydraulic

2шт.

9

296913

SPACER

2шт.

10

700126495

CLAMP

2шт.

11

7702079

SCREW

hex flange, 3/8-16 x 2-1/2 GR. 8

2шт.

12

700150178

CLAMP

1шт.

13

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

14

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

15

063875

CLEVIS PIN

1/2 x 2-1/2

1шт.

16

700716327

CYLINDER

ASSEMBLY hydraulic

1шт.

Part of Ref. 1, part number 218-5103

1шт.
