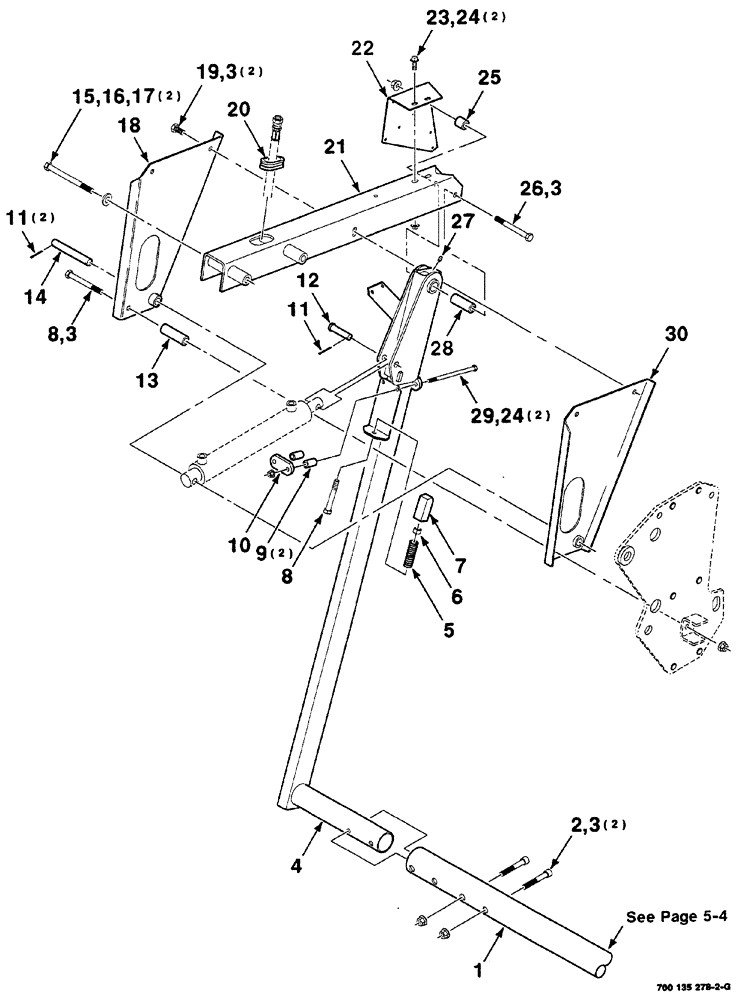

Запчасти Case IH RS561 (05-006) - KICKER ASSEMBLY (RIGHT) (16) - BALE EJECTOR

1

700150216

TUBE,73.02 mm OD, 1530 mm Length

kicker

1шт.

2

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

hex socket head cap, special, 1/2-13 x 3-1/4

2шт.

3

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

6шт.

4

700150835

STRUT

WA right

1шт.

5

700716851

SPRING

compression

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

1шт.

7

700135979

LATCH

1шт.

8

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

SCREW hex cap, 1/2-13 x 4-1/2

2шт.

9

700135978

SPACER

2шт.

10

700135976

PLATE

1шт.

11

432-1020

COTTER PIN,5/32" x 1 1/4"

3шт.

12

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8" x 2-1/2 "

1шт.

13

HFI140186

SPACER

1шт.

14

700132165

PIN

1шт.

15

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

hex, 5/8-11 x 7-1/2

2шт.

16

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

17

232-53110

FLANGE NUT,Flg, 5/8"-11

2шт.

18

700150831

MOUNTING PARTS

CHANNEL WA-right

1шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

20

8027427

GROMMET

1шт.

21

700150217

CHANNEL

WA right

1шт.

22

700136057

SUPPORT

SWITCH

1шт.

23

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

4шт.

25

6181002

SPACER

1шт.

26

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW hex cap, 1/2-13 x 5

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

28

700132166

SPACER

1шт.

29

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

hex, 3/8-16 x 6

2шт.

30

700150829

MOUNTING PARTS

CHANNEL WA left

1шт.
