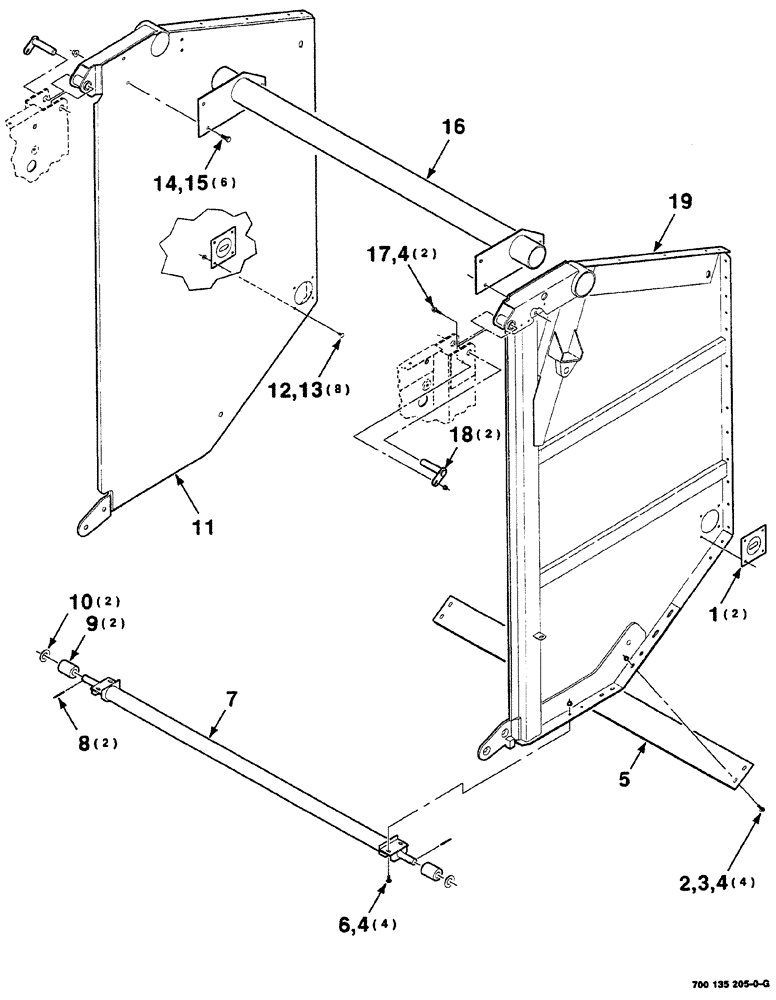

Запчасти Case IH RS561 (05-002) - TAILGATE ASSEMBLY (16) - BALE EJECTOR

1

700125148

PLUG

2шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

3

495-21044

WASHER,3/8"

4шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

10шт.

5

700135733

SUPPORT

lower

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

7

700135414

SHAFT

WA

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

2шт.

9

700132082

BUSHING

2шт.

10

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

11

700135380

SIDE ASSY.

WA tailgate, right

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

8шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

6шт.

16

700135402

TUBE

WA

1шт.

17

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.

18

700135411

PIN

WA

2шт.

19

700135379

SIDE ASSY.

WA tailgate, left

1шт.
