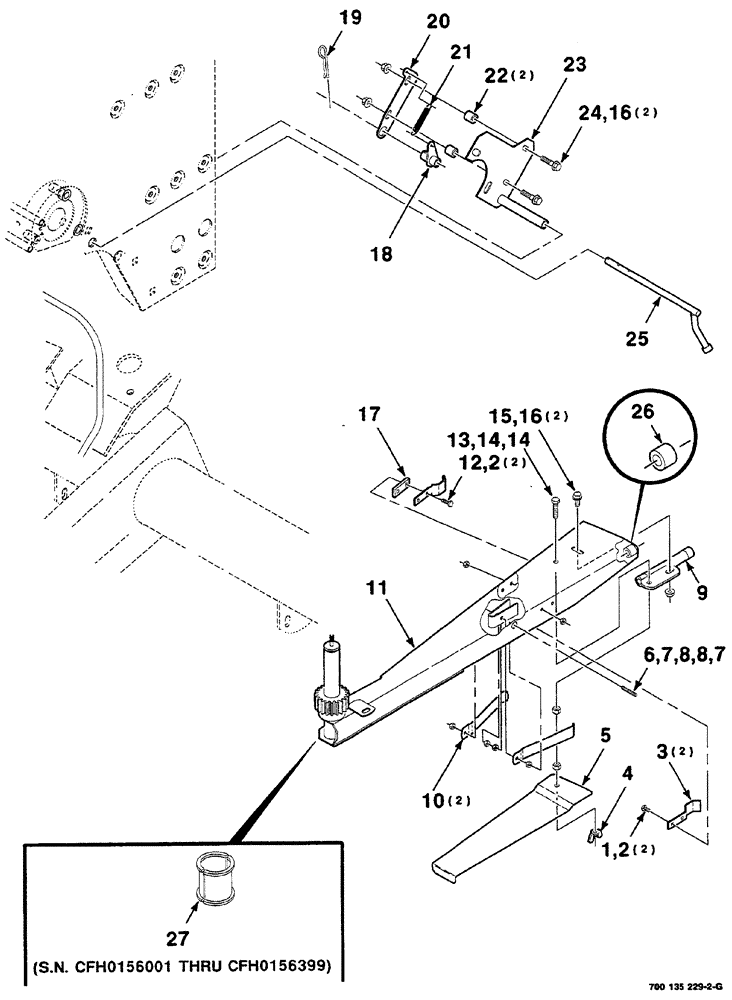

Запчасти Case IH RS561 (06-032) - TWINE THREADER SUPPORT ASSEMBLIES (13) - FEEDER

1

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

2

232-4114

LOCK NUT,1/4"-20, GC

hex top, 1/4-20 GR/B

4шт.

3

700122987

GUIDE

twine

2шт.

4

129-410

WING NUT,3/8"-16

1шт.

5

700132997

SHIELD

twinearm

1шт.

6

700135164

ROD

threaded, 1/4-20

1шт.

7

425-104

NUT,1/4"-20, Cl 5

2шт.

8

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

9

700132413

ARM

WA twine

1шт.

10

700707665

LARGE PLATE

PLATE, LARGE LEAF spring

2шт.

11

700135660

ARM

WA twine (Includes: Ref. 26)

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

873083

SCREW

SCREW full thread hex cap, 3/8-16 x 1-1/2

1шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

4шт.

17

700132412

PLATE

1шт.

18

700135090

LEVER

WA

1шт.

19

S120261

PIN

wire hair, cotter, .148

1шт.

20

700135093

PLATE

1шт.

21

700707432

SPRING

extension

1шт.

22

6869382

SPACER

2шт.

23

700150125

SUPPORT

WA

1шт.

24

700711084

BOLT

3/8-16 x 1-1/2 NFS GR. 8

2шт.

25

700150123

GUIDE

WA right, plated

1шт.

26

700107983

GUIDE

1шт.

Part of Ref.11, part number 700135660

1шт.

27

700153710

SPOOL

1шт.
