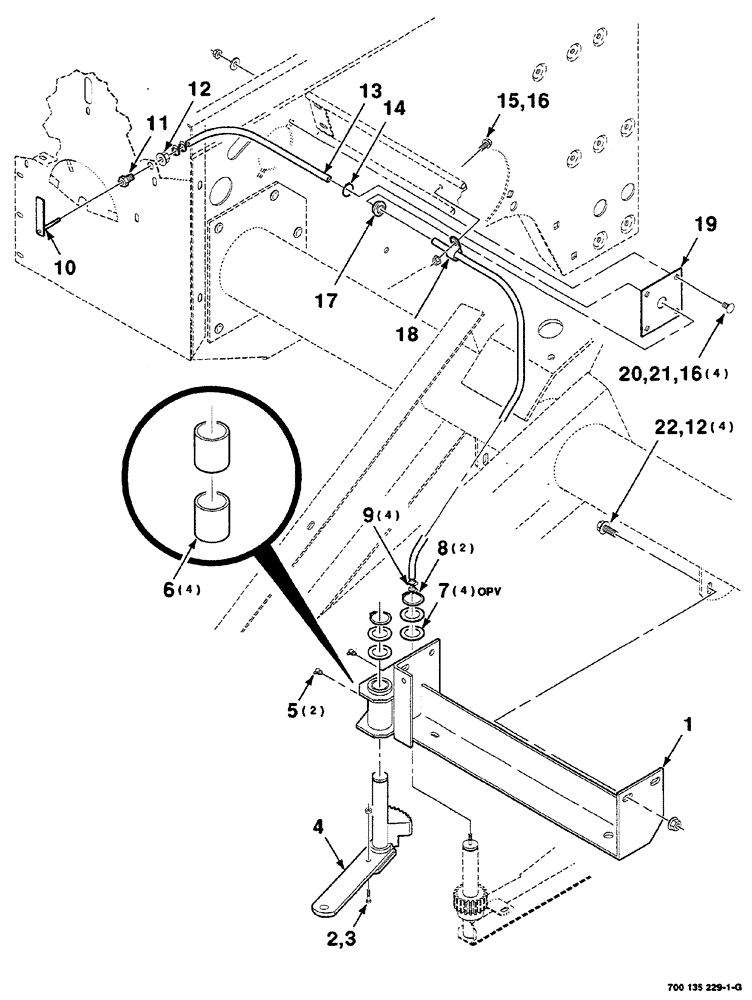

Запчасти Case IH RS561 (06-030) - TWINE THREADER ASSEMBLY (13) - FEEDER

1

700135651

SUPPORT

WA twine arm (Includes: Ref. 6)

1шт.

2

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

3

230-4115

LOCK NUT,5/16"-18, GA

hex top lock, 5/16-18 GR/B

1шт.

4

700135662

SHAFT

WA

1шт.

5

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

6

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

BEARING bronze

4шт.

7

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

BUSHING narrow rim machinery, 1-1/4 x 14 gauge

4шт.

8

103-11125

SNAP RING,#125, Ext

2шт.

9

7721020

HOSE CLAMP

4шт.

10

700135805

INDICATOR

WA

1шт.

11

700135804

BOLT

special

1шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

5шт.

13

700716275

HYDRAULIC HOSE,0.25" ID x 49.21", SAE 100R2 or SAE 100R16, SAE J517

1шт.

14

100-11100

SNAP RING,#100, Ext

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

16

231-5146

FLANGE NUT,3/8"-16

5шт.

17

700107977

GUIDE

twine

1шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

19

700135773

PLATE

1шт.

20

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

21

496-81010

WASHER

hardened wide plain, 3/8

4шт.

22

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

4шт.
