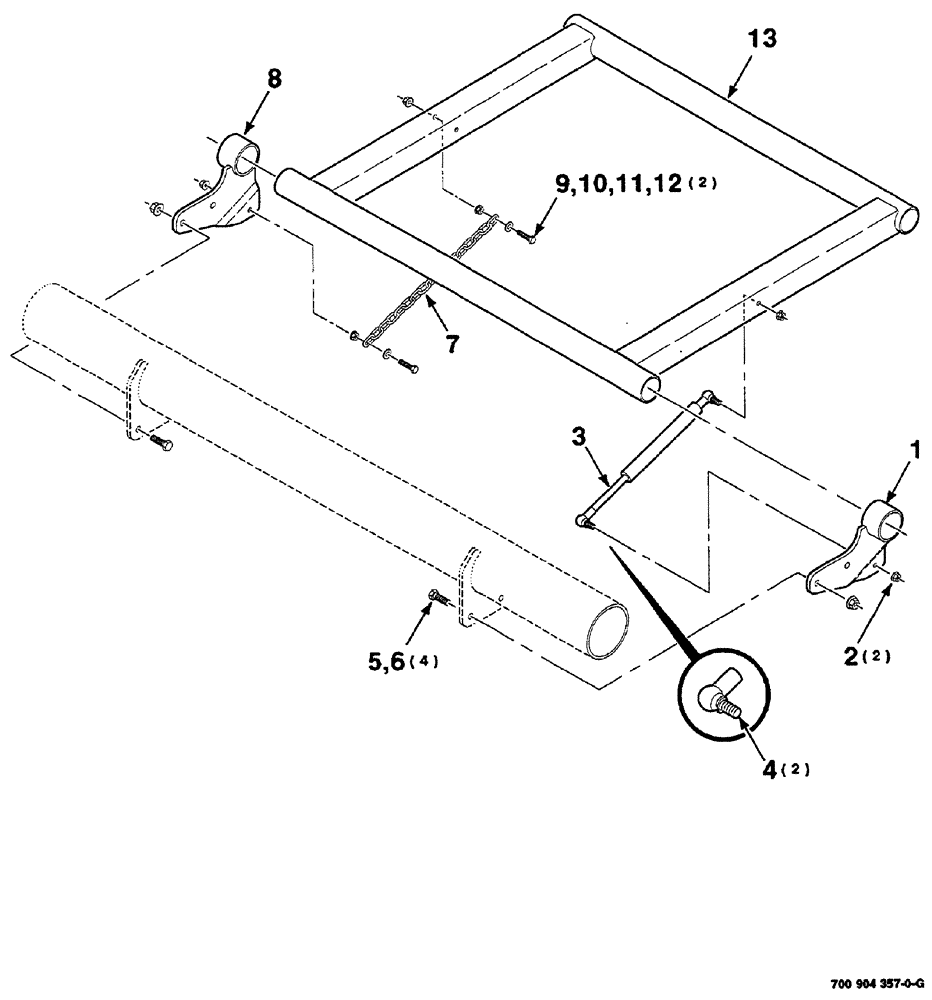

Запчасти Case IH RS561 (09-012) - BALE RAMP KIT (TO BE ORDERED THRU WHOLEGOODS ONLY) Decals & Attachments

HK50921

KIT bale ramp complete

1шт.

1

700135920

SUPPORT

WA left

1шт.

2

700711876

LOCK NUT

hex flange top lock, M10 x 1.5, class 9

2шт.

3

107898

GAS STRUT

spring, (Includes: Ref. 4)

1шт.

4

700718303

JOINT

ball, 14-28

2шт.

Part of Ref. 3, part number 107898

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

4шт.

7

1662543

CHAIN (AG)

1шт.

8

700135924

SUPPORT

WA right

1шт.

9

873083

SCREW

SCREW full thread hex cap, 3/8-16 x 1-1/2

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain 3/8

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

13

700135926

RAMP

WA

1шт.
