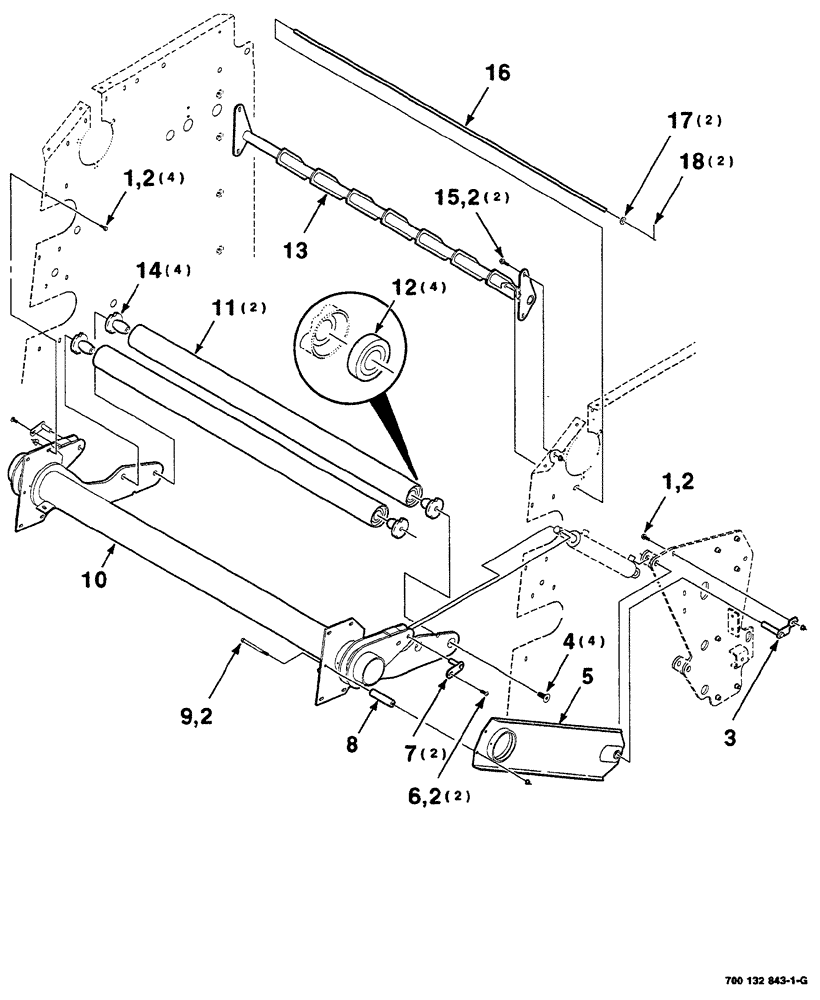

Запчасти Case IH RS561 (06-018) - BELT TENSIONING ROLLER ASSEMBLY (S.N. CFH0156400 AND LATER) (13) - FEEDER

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

5шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

10шт.

3

700132870

SPECIAL PIN

WA

1шт.

4

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

hex socket flat countersunk head cap, 3/4-10 x 1-3/4

4шт.

5

700132889

SUPPORT

WA upper

1шт.

6

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

3/8-16 x 1 HSHBHCS GR. 8 NP

2шт.

7

700132919

SPECIAL PIN

WA

2шт.

8

700132891

TUBE,25.4 mm OD, 102.5 mm Length

SPACER

1шт.

9

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

10

700132868

ARM

WA upper

1шт.

11

700124615

ROLLER

ASSEMBLY (Includes Item 12)

2шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

Part of ASSY., part number 700124615

1шт.

13

700132776

GUIDE

WA upper

1шт.

14

700100927

HUB

4шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.

16

700132781

ROD

1шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

18

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.
