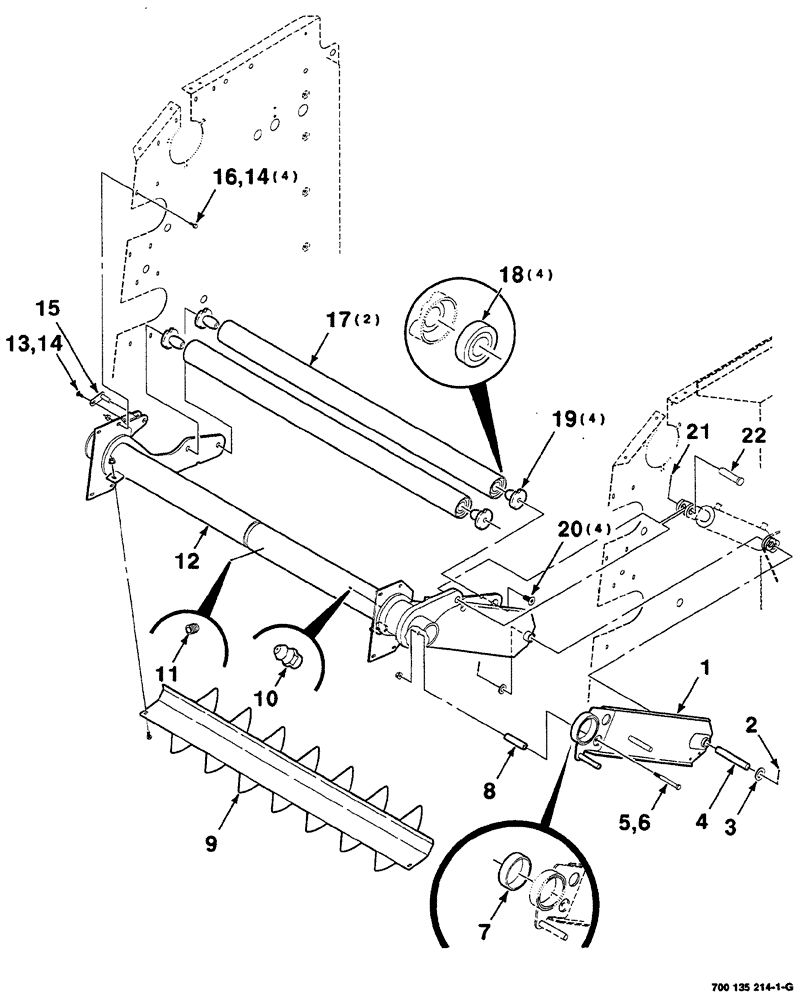

Запчасти Case IH RS561 (06-016) - BELT TENSIONING ROLLER ASSEMBLY (S.N. CFH0156001 THRU CFH0156399) (13) - FEEDER

1

700135537

SUPPORT

WA outer, upper (Includes: Ref. 7)

1шт.

2

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

3

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

4

700135516

PIN

1шт.

5

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW hex cap,1/2-13 x 5

1шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

1шт.

7

700716064

BUSHING

bronze

1шт.

Part of Ref. 1, part number 700135537

1шт.

8

700135518

TUBE,0.562" ID, 25.4 mm OD, 102 mm Length

1шт.

9

700135519

GUIDE

WA belt

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

69500

SET SCREW

cup point hex socket, 1/4-28 NP

1шт.

12

700135524

ARM

WA upper

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

5шт.

15

700132919

SPECIAL PIN

WA

1шт.

16

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

17

700124615

ROLLER

ASSEMBLY (Includes: Ref. 18)

2шт.

18

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

Part of ASSY., part number 700124615

1шт.

19

700100927

HUB

4шт.

20

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

hex socket flat countersunk head cap, 3/4-10 x 1-3/4

4шт.

21

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

22

700710292

PIN

clevis, special, 1

1шт.
