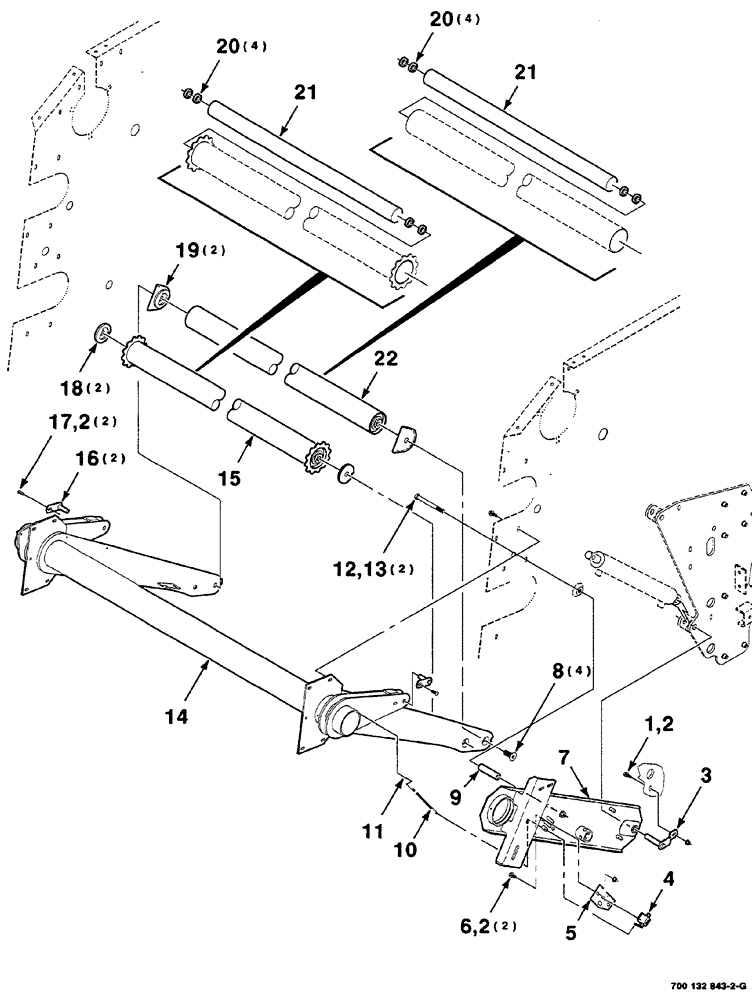

Запчасти Case IH RS561 (06-014) - BALE TENSIONING ROLLER ASSEMBLY (S.N. CFH0156399 AND LATER) (13) - FEEDER

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

5шт.

3

700132870

SPECIAL PIN

WA

1шт.

4

700707437

COUNTER

BALE

1шт.

5

700150222

PLATE

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

7

700132879

SUPPORT

WA lower, left

1шт.

8

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

hex socket flat countersunk head cap, 3/4-10 x 1-3/4

4шт.

9

700132903

SPACER

1шт.

10

700716222

SPRING

extension

1шт.

11

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

12

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW hex cap, 1/2-13 x 5

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

14

700132859

ARM

WA lower

1шт.

15

700150042

ROLLER

ASSEMBLY (Includes: Ref. 20 & 21)

1шт.

16

700132919

SPECIAL PIN

WA

2шт.

17

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

3/8-16 x 1 HSBHCS GR. 8 NP

2шт.

18

700150040

WASHER

WA special

2шт.

19

700150036

GUIDE

WA

2шт.

20

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

8шт.

Part of Ref. 15 & 22, part numbers 700150042, 700150043

1шт.

21

700150048

SHAFT

2шт.

Part of Ref. 15 & 22, part numbers 700150042, 700150043

1шт.

22

700150043

ROLLER

ASSEMBLY (Includes: Ref. 20 & 21)

1шт.
