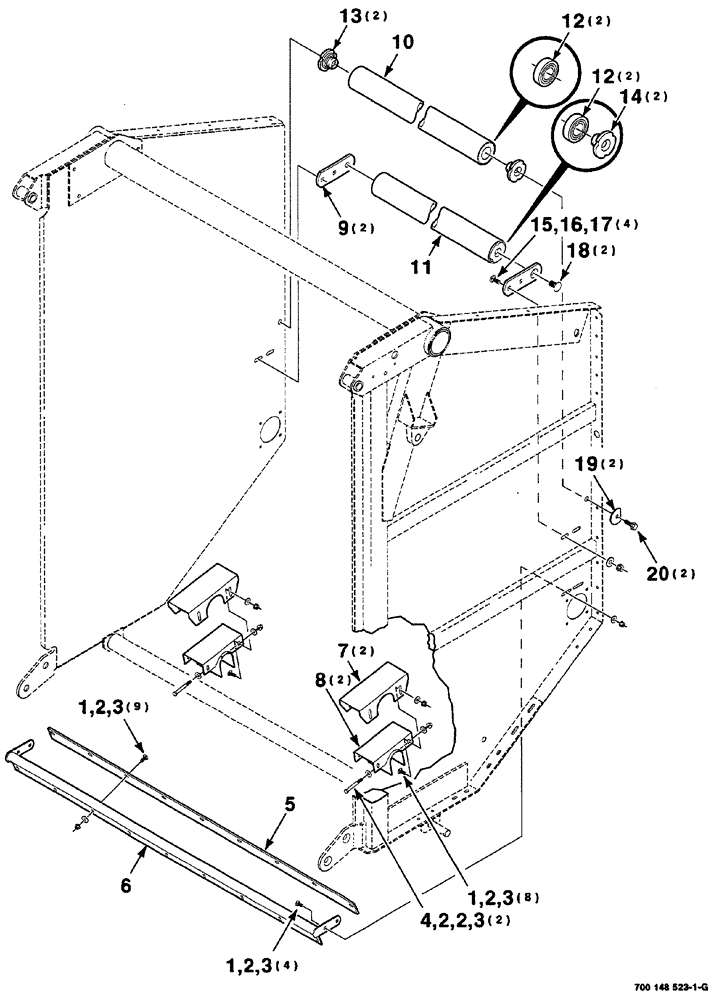

Запчасти Case IH RS561 (06-008) - TAILGATE SUPPORT ASSEMBLIES (MESH WRAP ONLY) (13) - FEEDER

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

21шт.

2

496-81010

WASHER

hardened wide plain, 3/8

25шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

23шт.

4

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

5

700148781

SCRAPER

1шт.

6

700148778

MOUNTING PARTS

WA

1шт.

7

700148714

SUPPORT

2шт.

8

700148787

SUPPORT

WA

2шт.

9

700148683

STRAP

2шт.

10

700124612

ROLLER

ASSEMBLY (Includes Item 12)

1шт.

11

700148782

ROLLER

ASSEMBLY (Includes Items 12 and 14)

1шт.

12

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

cylindrical

4шт.

Part of Ref. 10 & 11, part numbers 700124612, 700148782

1шт.

13

700718217

HUB

2шт.

14

700100927

HUB

2шт.

Part of Ref. 11, part number 700148782

1шт.

15

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

4шт.

16

700711557

WASHER

hardened wide plain, 1/2

4шт.

17

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

4шт.

18

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

hex socket flat countersunk head cap, 3/4-10 x 1-3/4 SPL

2шт.

19

700151502

WASHER

special

2шт.

20

8701237

BOLT

SCREW hex flange, 1/2-13 x 1-1/2 GR. 8

2шт.
