Запчасти Case IH RS561 (07-050) - MESH WRAP SHIELD ASSEMBLY (12) - MAIN FRAME

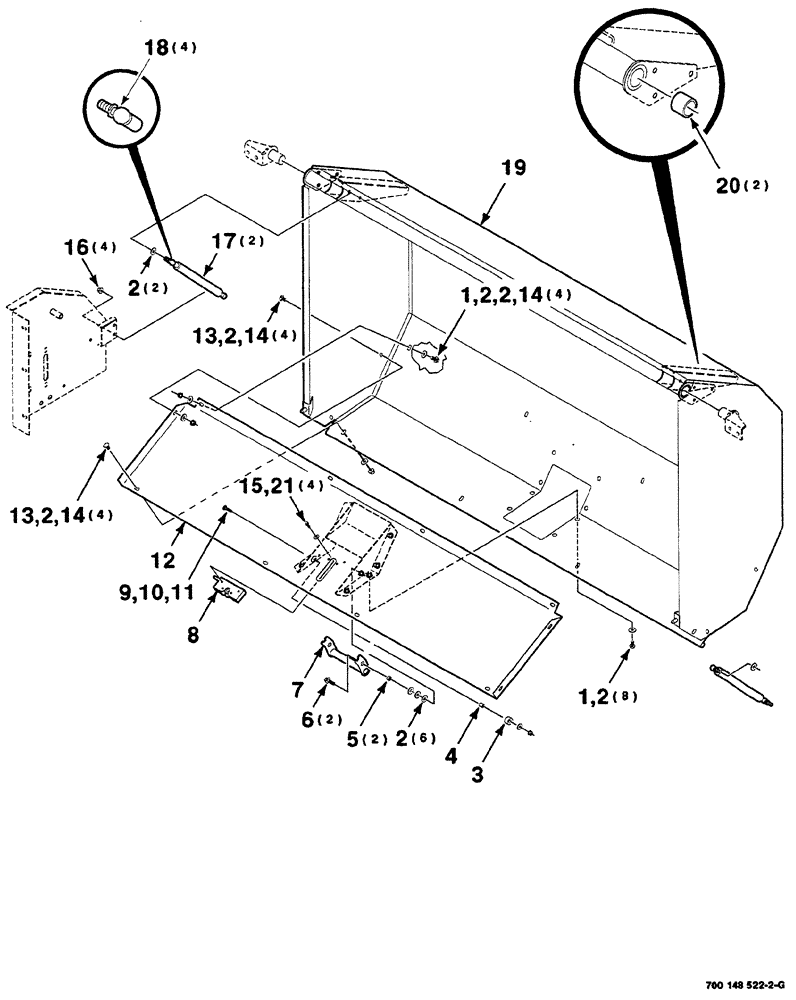

Схема запчастей Case IH RS561 - (07-050) - MESH WRAP SHIELD ASSEMBLY (12) - MAIN FRAME
4
2
13
14
21
2
2
12
14
3
11
16
5
2
14
2
19
1
1
18
9
2
10
13
6
15
17
2
20
8
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

12шт.

2

496-81010

WASHER

hardened wide plain, 3/8

32шт.

3

700717030

BUSHING

1шт.

4

6523799

BUSHING

tensioner

1шт.

5

6270888

BUSHING

SPACER

2шт.

6

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.

7

700148582

LATCH

WA

1шт.

8

700720033

LATCH

1шт.

9

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, round head square neck, 5/16-18 x 1-1/4

1шт.

10

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

1шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

1шт.

12

700148756

SUPPORT

WA

1шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

14

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

12шт.

15

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

hex washer head machine, 1/4-20 x 3/4

4шт.

16

700711876

LOCK NUT

hex flange top lock, M10 x 1.5 class 9

4шт.

17

700717029

CYLINDER ASSY.

GAS spring (Includes: Ref. 18)

2шт.

18

700718303

JOINT

ball, 14-28

4шт.

Part of Ref. 17, part number 700717029

1шт.

19

700148806

SHIELD

WA

1шт.

20

700152035

BUSHING

2шт.

21

495-21031

WASHER,1/4"

4шт.
