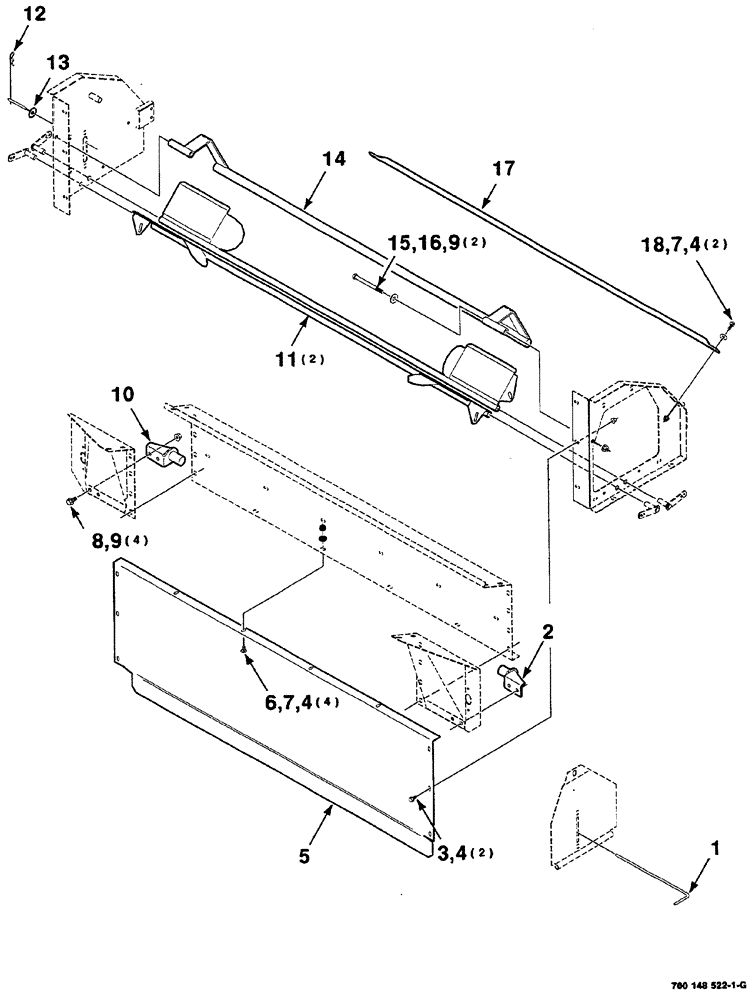

Запчасти Case IH RS561 (07-046) - MESH WRAP ROLLER SUPPORT ASSEMBLY (12) - MAIN FRAME

1

700148764

ROD

1шт.

2

700148602

PIVOT

WA left

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

8шт.

5

700148758

PANEL

1шт.

6

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

7

496-81010

WASHER

hardened wide plain, 3/8

6шт.

8

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

hex flange, 1/2-13 x 1 GR. 8

4шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

6шт.

10

700148603

PIVOT

WA right

1шт.

11

700148760

SUPPORT

WA

2шт.

12

T54573

PIN

wire hair, cotter, .120

1шт.

13

700710049

WASHER

fender, 3/8

1шт.

14

700148762

ARM

WA

1шт.

15

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

SCREW hex cap, 1/2-13 x 5-1/2

2шт.

16

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

2шт.

17

700148784

SHAFT

PIPE

1шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.
