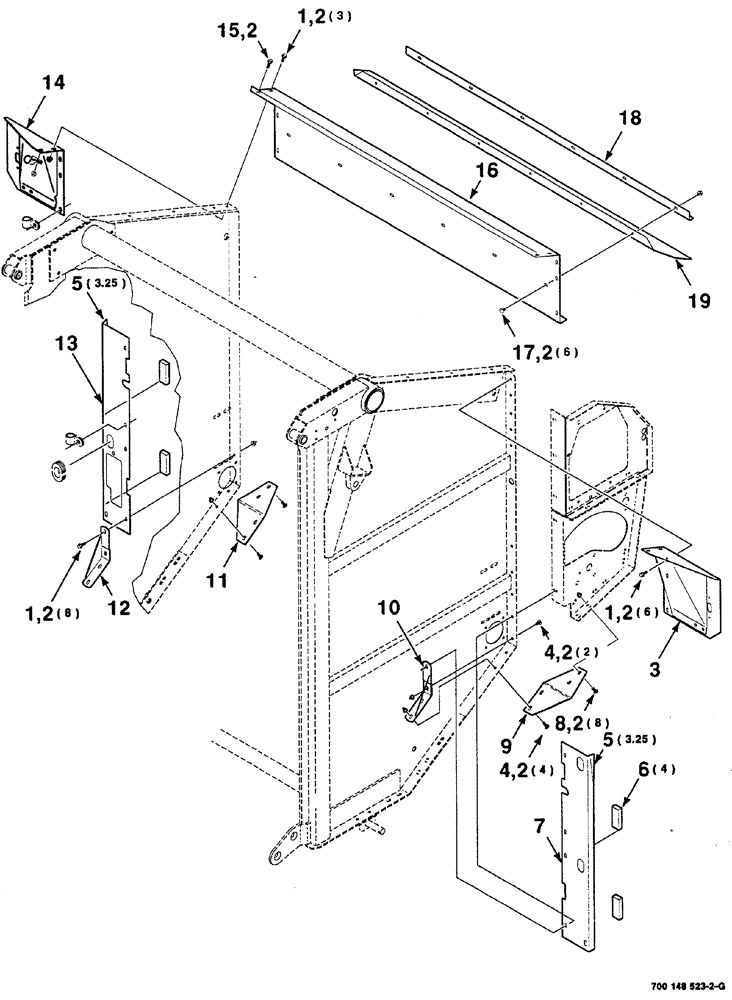

Запчасти Case IH RS561 (07-042) - TAILGATE SHIELDS (WITH MESH WRAP) (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

17шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

38шт.

3

700148766

SUPPORT

WA left

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

5

700717353

TAPE

3M adhesive (FT)

6.5шт.

6

700717354

PAD

foam rubber

4шт.

7

700148773

ANGLE

left

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

8шт.

9

700148776

SUPPORT

left

1шт.

10

700151511

SUPPORT

WA left

1шт.

11

700148777

SUPPORT

right

1шт.

12

700151517

SUPPORT

WA right

1шт.

13

700148774

ANGLE

right

1шт.

14

700148770

SUPPORT

WA right

1шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

1шт.

16

700148765

SUPPORT

upper

1шт.

17

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

18

700148790

ANGLE

1шт.

19

700717257

SHIELD

rubber

1шт.
