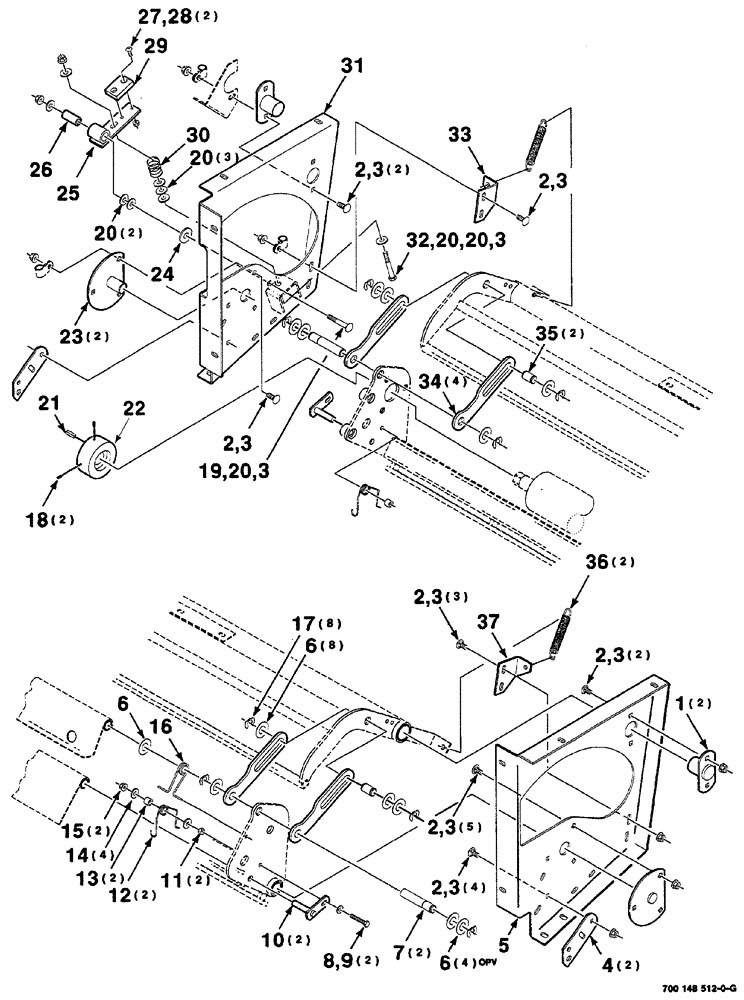

Запчасти Case IH RS561 (07-036) - MESH WRAP FRAME ASSEMBLY (LOWER) (12) - MAIN FRAME

1

700148550

MOUNTING PARTS

WA

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

18шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

20шт.

4

700148547

MOUNTING PARTS

2шт.

5

700148539

PANEL

left

1шт.

6

195-2089

WASHER,25/32" x 1 1/2" x .083"

BUSHING wide rim machinery, 3/4 x 18 gauge

13шт.

7

700148543

PIN

2шт.

8

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

SCREW full thread hex cap, 5/16-18 x 1-3/4

2шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

10

700148545

PIN

WA

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700717039

SPRING

torsion

2шт.

13

442178

BUSHING

2шт.

14

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

2шт.

16

700718011

SPRING

torsion

1шт.

17

700718093

RING

retaining, EXT

8шт.

18

83-516

SET SCREW,Hex Soc, 5/16"-18 x 1"

cup point hex socket, 5/16-18 x 1 NP

2шт.

19

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

round head square neck, 3/8-16 x 2-3/4

1шт.

20

496-81010

WASHER

hardened wide plain, 3/8

8шт.

21

Q53

KEY,1/4" Sq x 1", Par

1шт.

22

700148554

DRUM

BRAKE

1шт.

23

700148537

MOUNTING PARTS

WA

2шт.

24

700711557

WASHER

hardened wide plain, 1/2

1шт.

25

700125828

SUPPORT

WA BRAKE

1шт.

26

700109003

BUSHING

1шт.

27

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR 60M

2шт.

28

1703354

NUT

hex flange top lock, 1/4-20 GR/G

2шт.

29

700710930

PAD

BRAKE

1шт.

30

58107

SPRING

compression

1шт.

31

700148540

PANEL

WA-right

1шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

33

700148557

MOUNTING PARTS

right

1шт.

34

700148549

STRAP

4шт.

35

700148548

PIN

2шт.

36

7758220

SPRING

extension

2шт.

37

700148556

MOUNTING PARTS

left

1шт.
