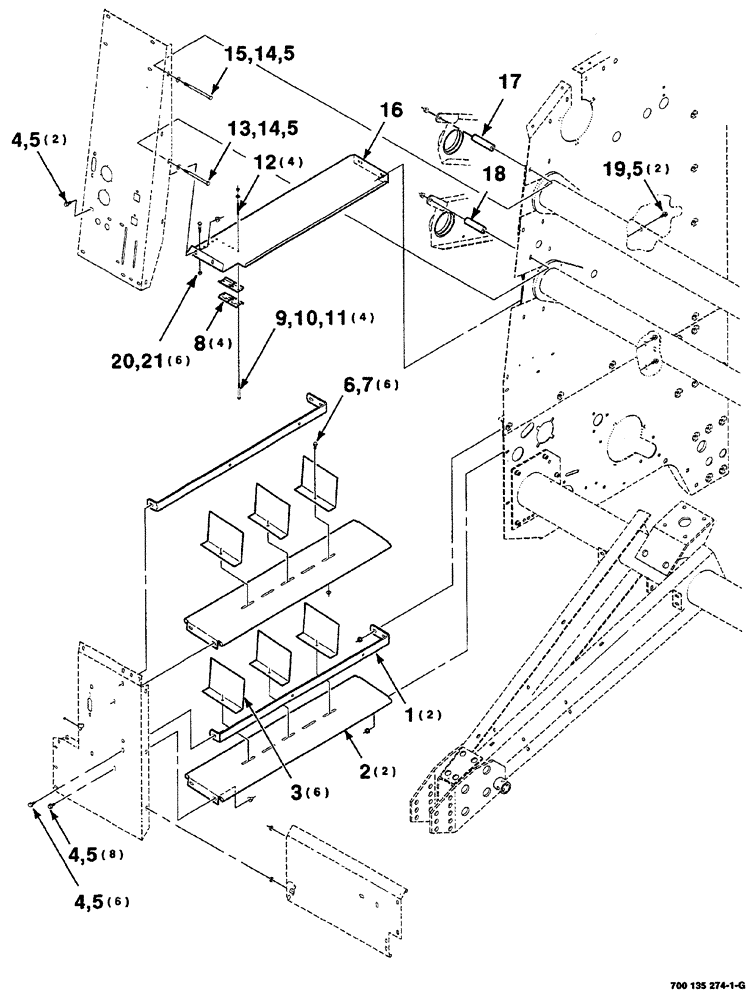

Запчасти Case IH RS561 (07-034) - TWINE BOX ASSEMBLY (12) - MAIN FRAME

1

700135612

GUARD

twine

2шт.

2

700135596

SUPPORT

twine

2шт.

3

6868459

DIVIDER

6шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

20шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

6шт.

8

6549869

SUPPORT

BRACKET tension

4шт.

9

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

SCREW hex cap, 1/4-20 x 2-3/4

4шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

4шт.

11

232-4114

LOCK NUT,1/4"-20, GC

hex top, 1/4-20 GR/B

4шт.

12

700707677

SPRING

compression

4шт.

13

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

2шт.

15

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

hex, 3/8-16 x 5-1/2

1шт.

16

700132898

SUPPORT

WA upper

1шт.

17

700132952

SPACER

1шт.

18

700132953

SPACER

1шт.

19

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

20

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

21

230-4115

LOCK NUT,5/16"-18, GA

hex top lock, 5/16-18 GR/B

6шт.
