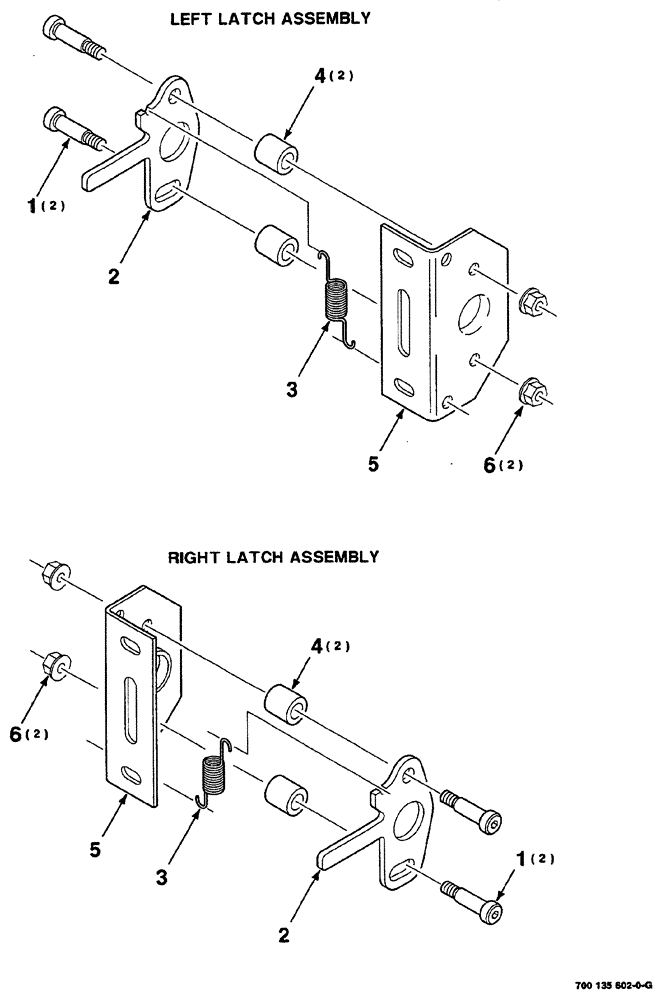

Запчасти Case IH RS561 (07-032) - SHIELD LATCH ASSEMBLIES (LEFT AND RIGHT) (12) - MAIN FRAME

1

72835

SCREW

hex socket head shoulder, 3/8 x 1 x 5/16-18 SPL

4шт.

2

700135606

LATCH

2шт.

3

700716060

SPRING

extension

2шт.

4

700135609

SPACER

4шт.

5

700135605

SUPPORT

latch

2шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

4шт.
