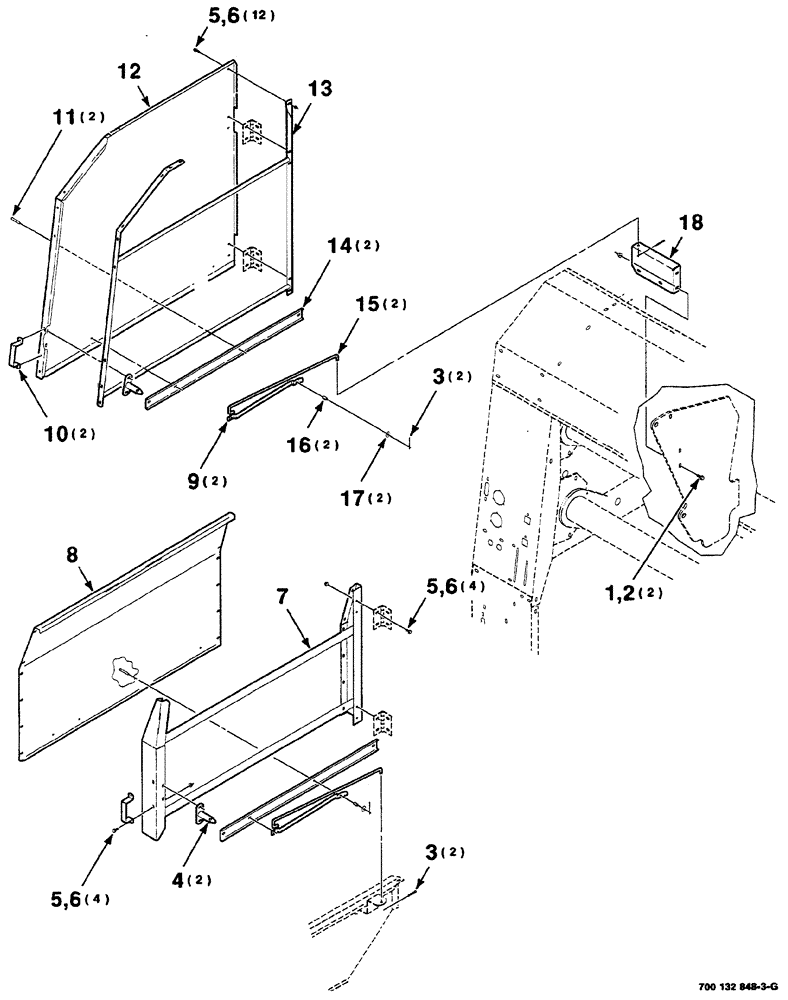

Запчасти Case IH RS561 (07-030) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (RIGHT) (S.N. CFH0156400 AND LATER) (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

4

700135648

PIN

WA

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

7

700150812

FRAME

WA right, shield (with reflector decal)

1шт.

8

700150811

SHIELD

lower, right (includes decals)

1шт.

9

700117061

LATCH

2шт.

10

700135650

HANDLE

2шт.

11

439-5532

HEADED PIN,5/16" x 2"

clevis, 5/16 x 2

2шт.

12

700132990

SHIELD

upper, right

1шт.

13

700132701

SUPPORT

WA right

1шт.

14

700132503

CHANNEL

2шт.

15

700117067

SUPPORT

2шт.

16

754606

SPRING

compression

2шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

2шт.

18

700132897

SUPPORT

right

1шт.
