(07-028) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156400 AND LATER)

Запчасти Case IH RS561 (07-028) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156400 AND LATER) (12) - MAIN FRAME

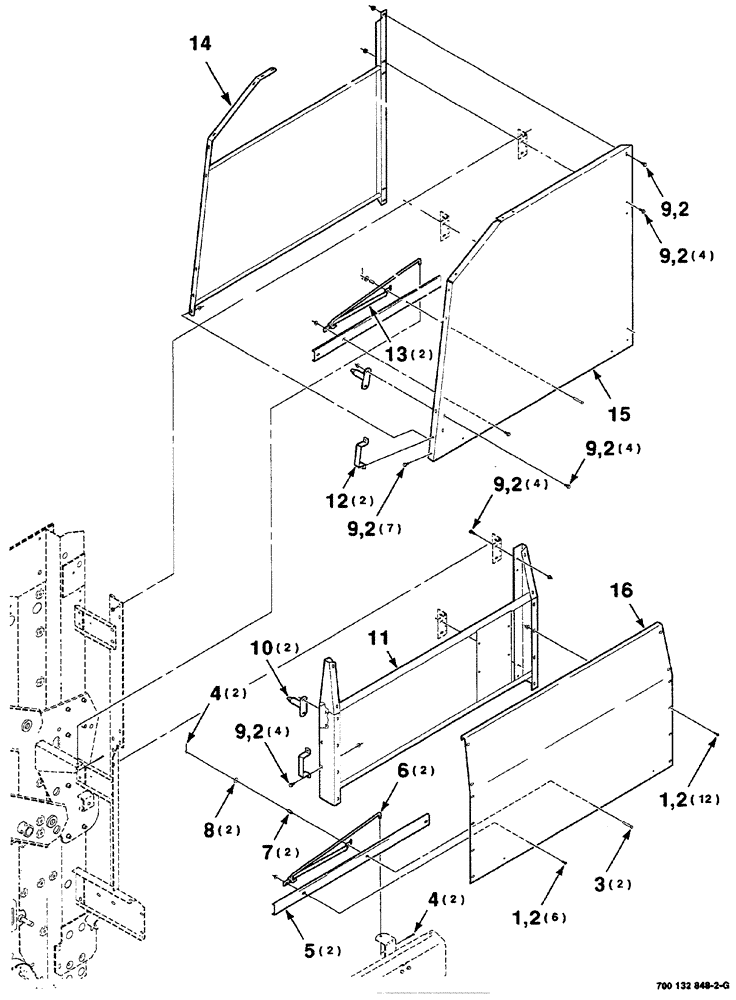

Схема запчастей Case IH RS561 - (07-028) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156400 AND LATER) (12) - MAIN FRAME
9
13
3
2
2
2
1
8
2
9
10
2
9
9
6
4
5
12
1
14
7
2
9
15
11
4
2
2
9
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

cross recess pan head machine, 5/16-18 x 3/4 GR 60M

18шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

42шт.

3

439-5532

HEADED PIN,5/16" x 2"

clevis, 5/16 x 2

2шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

5

700132503

CHANNEL

2шт.

6

700117067

SUPPORT

2шт.

7

754606

SPRING

compression

2шт.

8

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

24шт.

10

700135648

PIN

WA

2шт.

11

700150815

FRAME

WA left, shield (with reflector decals)

1шт.

12

700135650

HANDLE

2шт.

13

700117061

LATCH

2шт.

14

700132699

SUPPORT

WA left

1шт.

15

700132702

SHIELD

upper, left

1шт.

16

700150814

SHIELD

lower, left (includes decals)

1шт.
