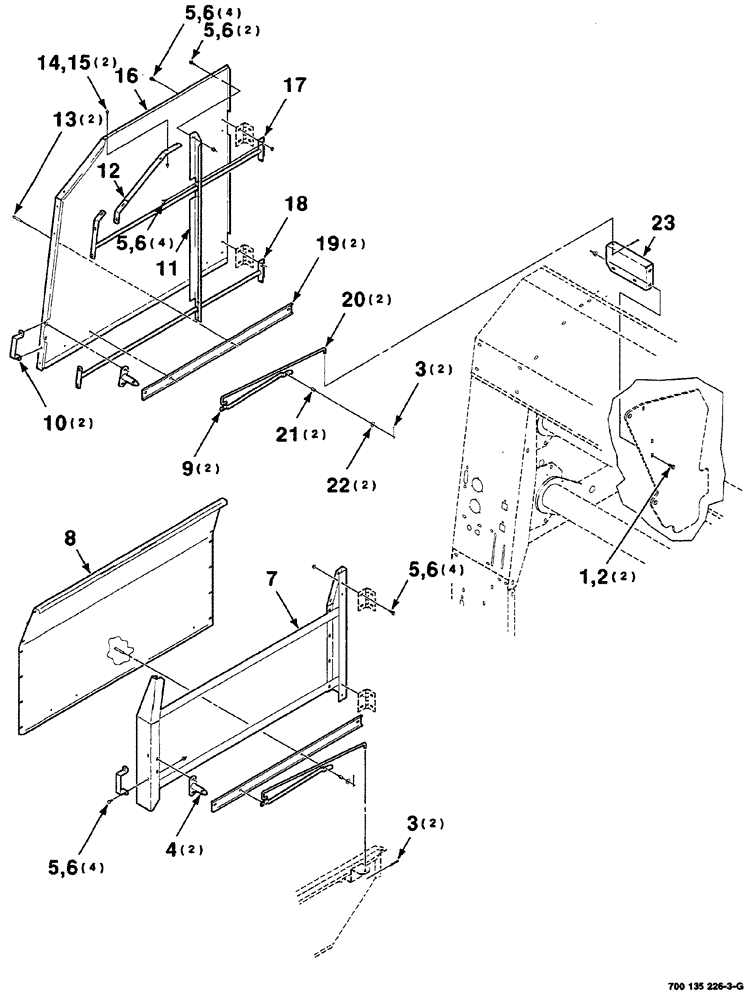

Запчасти Case IH RS561 (07-026) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (RIGHT) (S.N. CFH0156001 THRU CFH0156399) (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

4

700135648

PIN

WA

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

7

700150812

FRAME

WA right, shield (with reflector decal)

1шт.

8

700150811

SHIELD

lower, right (includes decals)

1шт.

9

700117061

LATCH

2шт.

10

700135650

HANDLE

2шт.

11

700153667

CHANNEL

right

1шт.

12

700153665

SUPPORT

right

1шт.

13

439-5532

HEADED PIN,5/16" x 2"

clevis, 5/16 x 2

2шт.

14

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

15

1703354

NUT

hex flange top lock, 1/4-20 GR/G

2шт.

16

700150163

SHIELD

upper, right

1шт.

17

700150165

SUPPORT

WA upper, right

1шт.

18

700150170

SUPPORT

WA lower, right

1шт.

19

700132503

CHANNEL

2шт.

20

700117067

SUPPORT

2шт.

21

754606

SPRING

compression

2шт.

22

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

2шт.

23

700132897

SUPPORT

right

1шт.
