(07-024) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156001 THRU CFH0156399)

Запчасти Case IH RS561 (07-024) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156001 THRU CFH0156399) (12) - MAIN FRAME

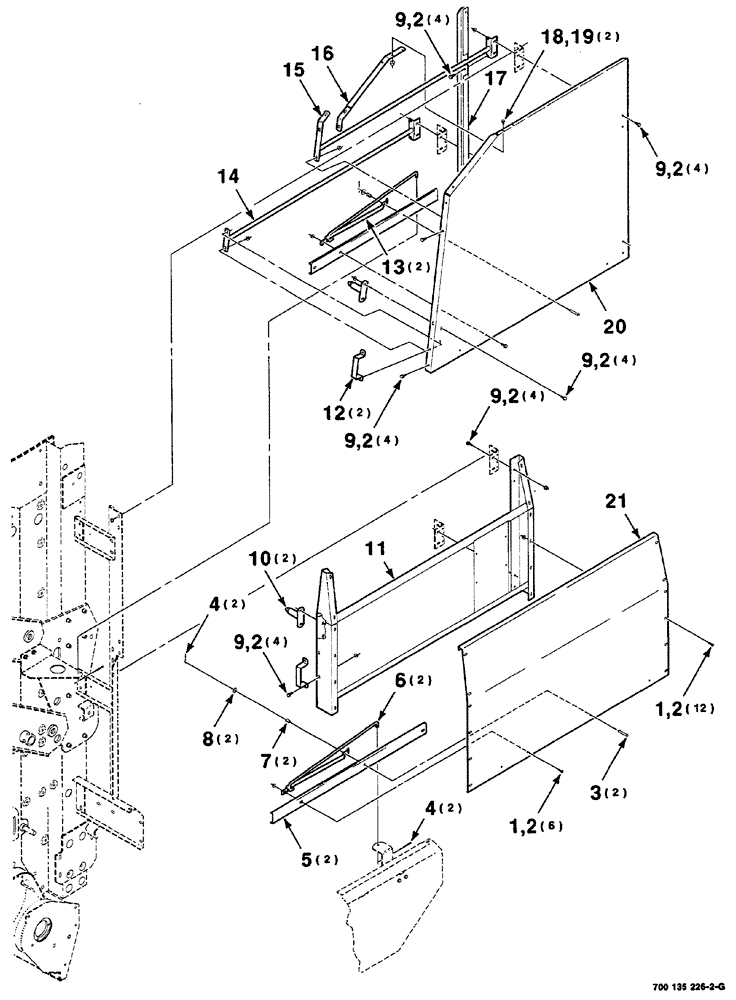

Схема запчастей Case IH RS561 - (07-024) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (LEFT) (S.N. CFH0156001 THRU CFH0156399) (12) - MAIN FRAME
6
21
9
2
2
7
9
4
19
9
1
3
2
2
1
14
20
2
2
12
9
10
9
17
8
15
2
4
11
16
5
2
18
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

cross recess pan head machine, 5/16-18 x 3/4 GR 60M

18шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

42шт.

3

439-5532

HEADED PIN,5/16" x 2"

clevis, 5/16 x 2

2шт.

4

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

5

700132503

CHANNEL

2шт.

6

700117067

SUPPORT

2шт.

7

754606

SPRING

compression

2шт.

8

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

24шт.

10

700135648

PIN

WA

2шт.

11

700150815

FRAME

WA left, shield (with reflector decals)

1шт.

12

700135650

HANDLE

2шт.

13

700117061

LATCH

2шт.

14

700150168

SUPPORT

WA lower, left

1шт.

15

700150164

SUPPORT

WA upper, left

1шт.

16

700153664

SUPPORT

left

1шт.

17

700153666

CHANNEL

left

1шт.

18

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

19

1703354

NUT

hex flange top lock, 1/4-20 GR/G

2шт.

20

700150162

SHIELD

upper, left

1шт.

21

700150814

SHIELD

lower, left (includes decals)

1шт.
