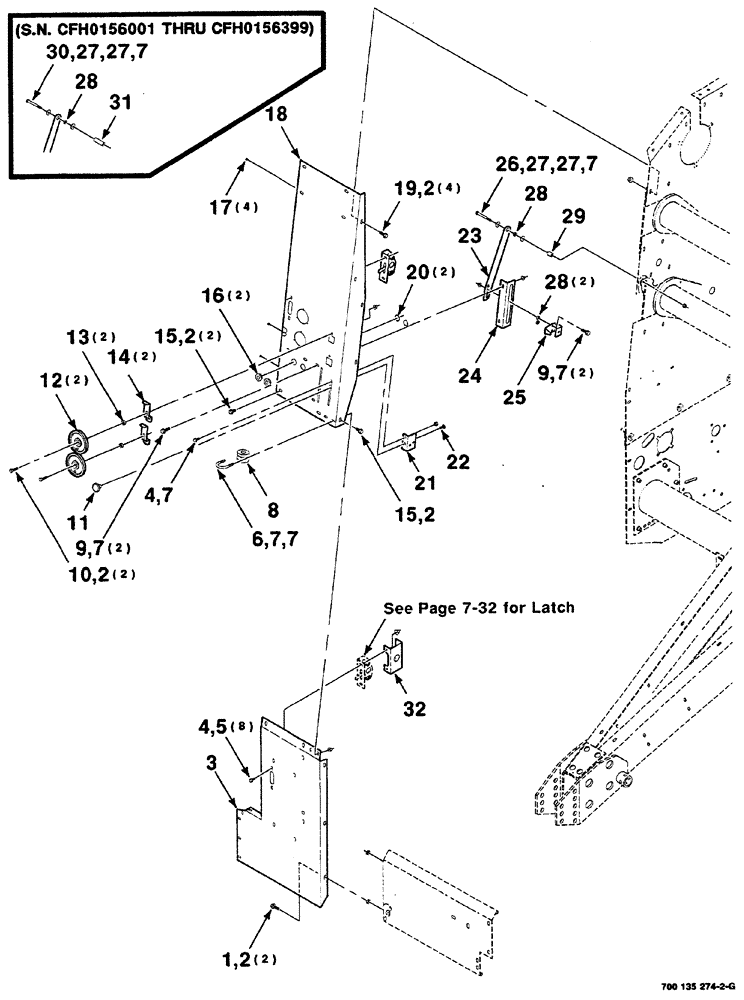

Запчасти Case IH RS561 (07-022) - LATCH SUPPORT AND BALE INDICATOR ASSEMBLIES (RIGHT) (12) - MAIN FRAME

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

11шт.

3

700132933

SHIELD

lower, right (includes decal)

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

6

51200861

U-BOLT

1шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G (S.N. CFH0156001 thru CFH0156399)

9шт.

8

7745003

GUIDE

1шт.

9

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW hex washer head machine, 5/16-18 x 1

4шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

700707234

BUTTON

knob

1шт.

12

700714888

PULLEY

2шт.

13

700116106

SPACER

2шт.

14

700135802

SUPPORT

guide

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

16

700107977

GUIDE

twine

2шт.

17

700715104

BUMPER

4шт.

18

700150806

SHIELD

upper, right (includes decal)

1шт.

19

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

20

100-11100

SNAP RING,#100, Ext

2шт.

21

700150800

SUPPORT

switch

1шт.

22

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

23

700150149

LINK

1шт.

24

700132479

ANGLE

1шт.

25

700135953

INDICATOR

1шт.

26

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

27

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16 (S.N. CFH0156001 thru CFH0156399)

4шт.

28

700115973

SPACER

(S.N. CFH0156001 thru CFH0156399)

4шт.

29

6827794

SPACER

(S.N. CFH0156400 and later)

1шт.

30

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

(S.N. CFH0156001 thru CFH0156399)

1шт.

31

700132481

SPACER

(S.N. CFH0156001 thru CFH0156399)

1шт.

32

700132899

SHIELD

latch

1шт.
