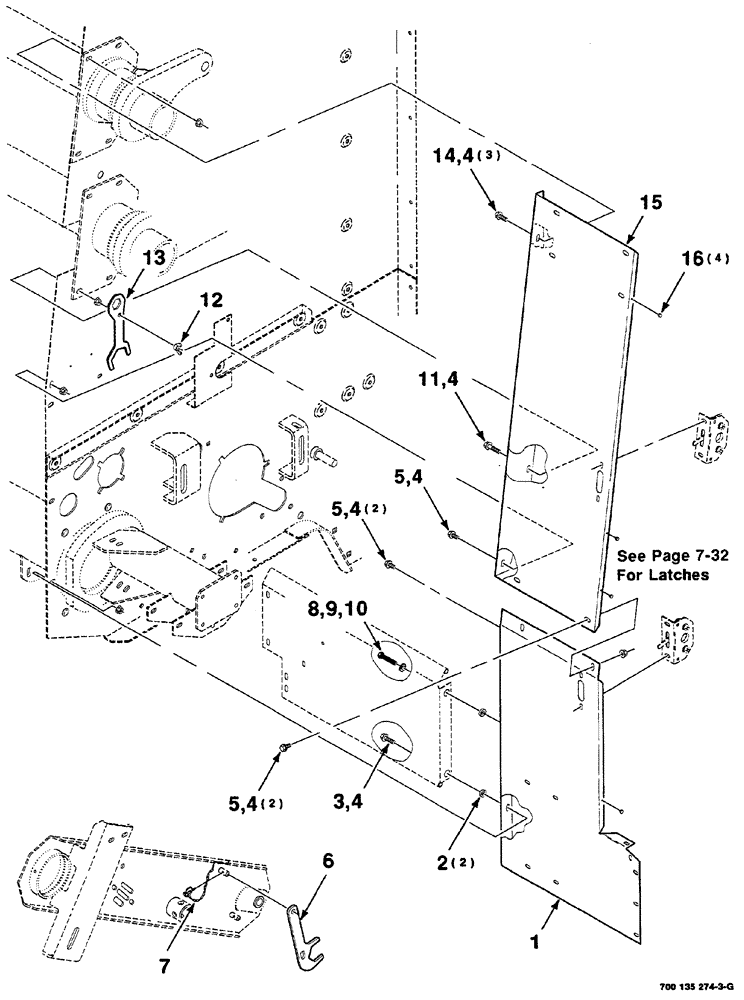

Запчасти Case IH RS561 (07-020) - LATCH SUPPORT ASSEMBLIES (LEFT) (12) - MAIN FRAME

1

700135610

SHIELD

lower, left

1шт.

2

700150182

SPACER

2шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

1шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

10шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

6

700132794

OPEN END WRENCH

1шт.

7

863415

PIN

klik

1шт.

8

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.

11

700711084

BOLT

SCREW hex flange, 3/8-16 x 1-1/2 GR. 8

1шт.

12

129-410

WING NUT,3/8"-16

1шт.

13

700135666

SPECIAL WRENCH

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

15

700150808

SHIELD

upper, left (includes decals)

1шт.

16

700715104

BUMPER

4шт.
