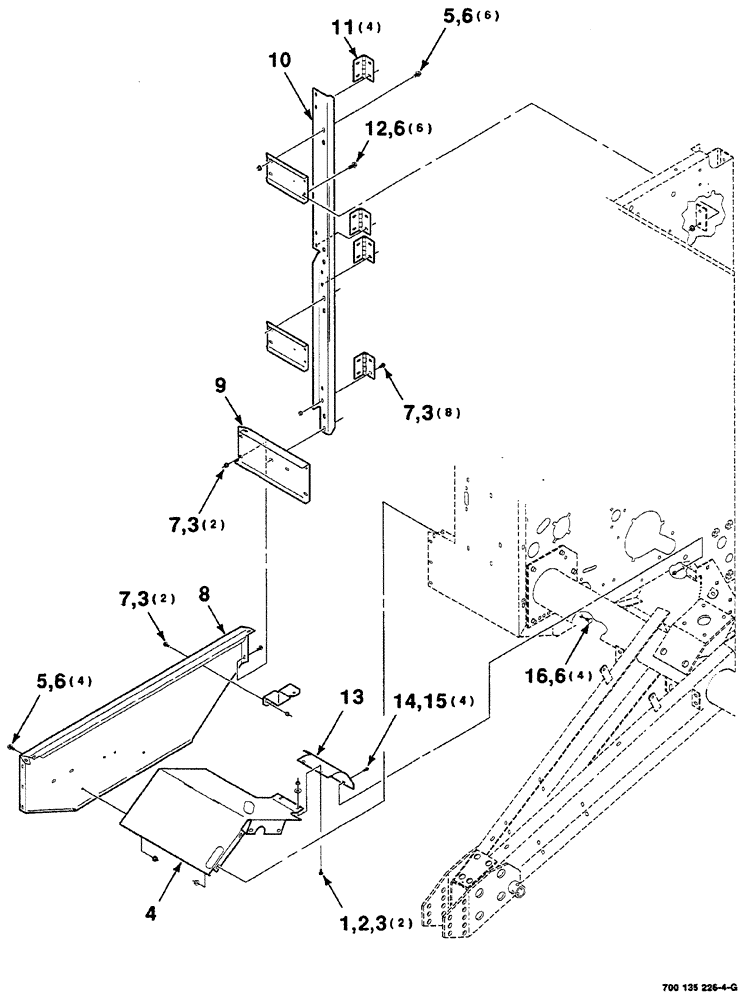

Запчасти Case IH RS561 (07-018) - SHIELD SUPPORT AND HINGE ASSEMBLIES (RIGHT) (12) - MAIN FRAME

1

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

2

496-81010

WASHER

hardened wide plain, 3/8

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

4

700150825

SHIELD

right

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

20шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

8

700135636

SHIELD

right

1шт.

9

700135630

SUPPORT

right

1шт.

10

700135627

SUPPORT

right

1шт.

11

700707701

HINGE

butt

4шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

13

700150884

SHIELD

lower, right

1шт.

14

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

hex washer head machine, 1/4-20 x 3/4

4шт.

15

1703354

NUT

hex flange top lock, 1/4-20 GR/G

4шт.

16

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.
