(07-016) - SHIELD SUPPORT AND HINGE ASSEMBLIES (LEFT)

Запчасти Case IH RS561 (07-016) - SHIELD SUPPORT AND HINGE ASSEMBLIES (LEFT) (12) - MAIN FRAME

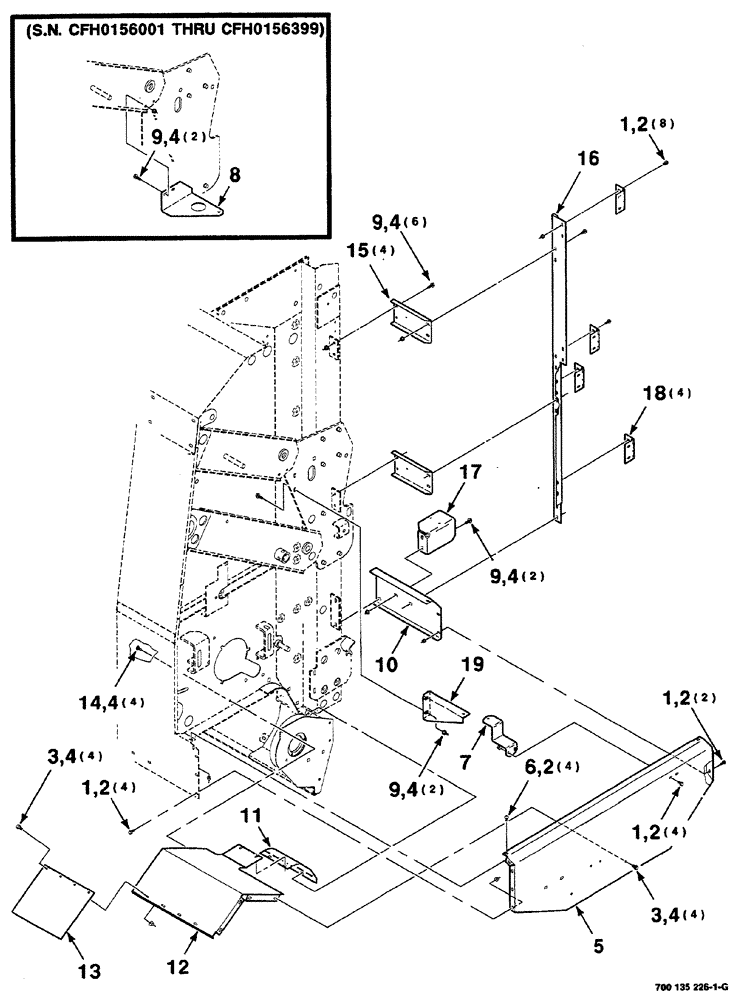

Схема запчастей Case IH RS561 - (07-016) - SHIELD SUPPORT AND HINGE ASSEMBLIES (LEFT) (12) - MAIN FRAME
1
9
2
14
2
3
2
5
9
8
10
4
15
13
4
17
9
11
4
1
19
9
1
4
12
2
4
6
3
1
4
16
18
2
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G (S.N. CFH0156001 thru CFH0156399)

24шт.

5

700135635

SHIELD

left

1шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

7

700135634

SUPPORT

1шт.

8

700135631

SUPPORT

left (S.N. CFH0156001 thru CFH0156399)

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

(S.N. CFH0156001 thru CFH0156399)

12шт.

10

700135629

SUPPORT

left

1шт.

11

700150883

SHIELD

lower, left

1шт.

12

700150824

SHIELD

left

1шт.

13

700718401

SHIELD

rubber

1шт.

14

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

15

700135628

SUPPORT

4шт.

16

700135626

SUPPORT

left

1шт.

17

700132505

SUPPORT

valve, mount

1шт.

18

700707701

HINGE

butt

4шт.

19

700132896

SUPPORT

left (S.N. CFH0156400 and later)

1шт.
