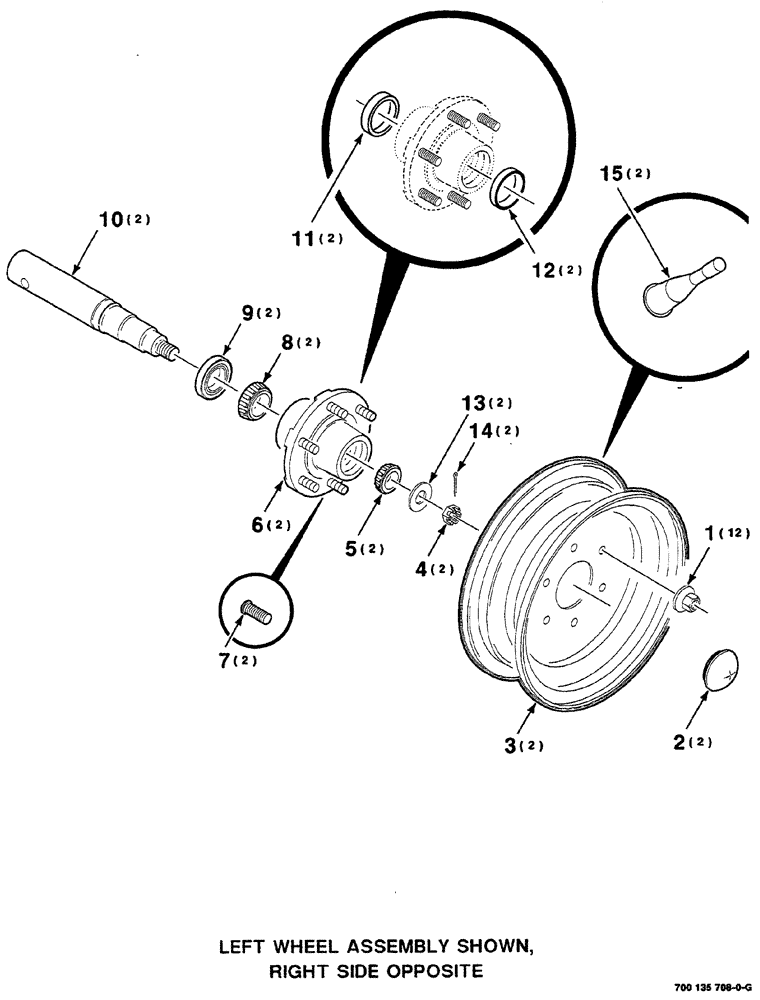

Запчасти Case IH RS561 (07-010) - WHEEL, HUB AND AXLE ASSEMBLY (16.1 INCH) (12) - MAIN FRAME

1

700715395

WHEEL NUT

9/16-18 WHEEL NUT, FLANGED

12шт.

2

D143405

CAP

HUB-CAP

2шт.

3

700717857

RIM

WHEEL

2шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

5

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

outer

2шт.

6

700714739

HUB

HUB (Includes Items 7, 11 and 12)

2шт.

7

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

STUD, 9/16-18 x 2.12

2шт.

Part of Ref. 6, part number 700714739

1шт.

8

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

inner

2шт.

9

491715R91

OIL SEAL

2шт.

10

700135709

SPINDLE

2шт.

11

130503H

BEARING CUP

CUP inner

2шт.

Part of Ref. 6, part number 700714739

1шт.

12

165964R1

BEARING CUP

CUP outer

2шт.

Part of Ref. 6, part number 700714739

1шт.

13

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

hardened plain, 7/8

2шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

15

A38261

VALVE

STEM

2шт.
