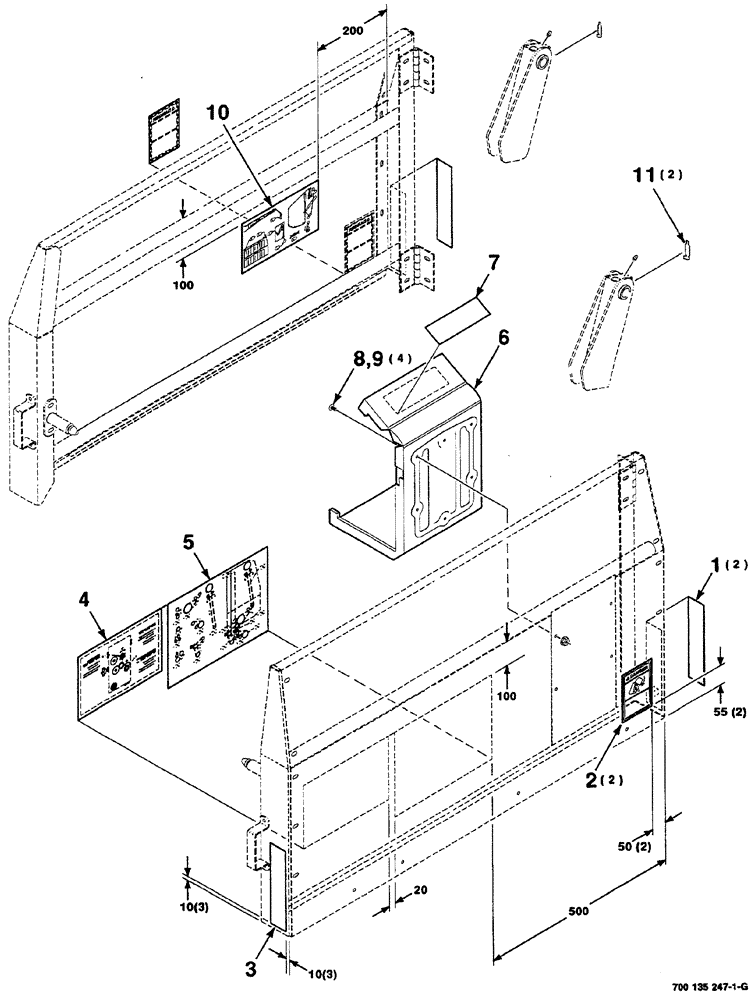

Запчасти Case IH RS561 (09-006) - DECAL AND LOCATION DIAGRAM (OPERATIONAL) Decals & Attachments

1

700717402

REFLECTOR

red

2шт.

2

700718107

DECAL

danger

2шт.

3

700717403

REFLECTOR

amber

1шт.

4

700717675

DECAL

valve adjustment

1шт.

5

700718008

DECAL

routing (S.N. CFH0156001 thru CFH0156399)

1шт.

5

700726015

DECAL

routing (S.N. CFH0156400 and Later)

1шт.

6

700714418

HOLDER

manual

1шт.

7

700714585

DECAL

manual holder

1шт.

8

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

GR60M

4шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

700716322

DECAL

routing

1шт.

11

7889306

DECAL

lube

2шт.
