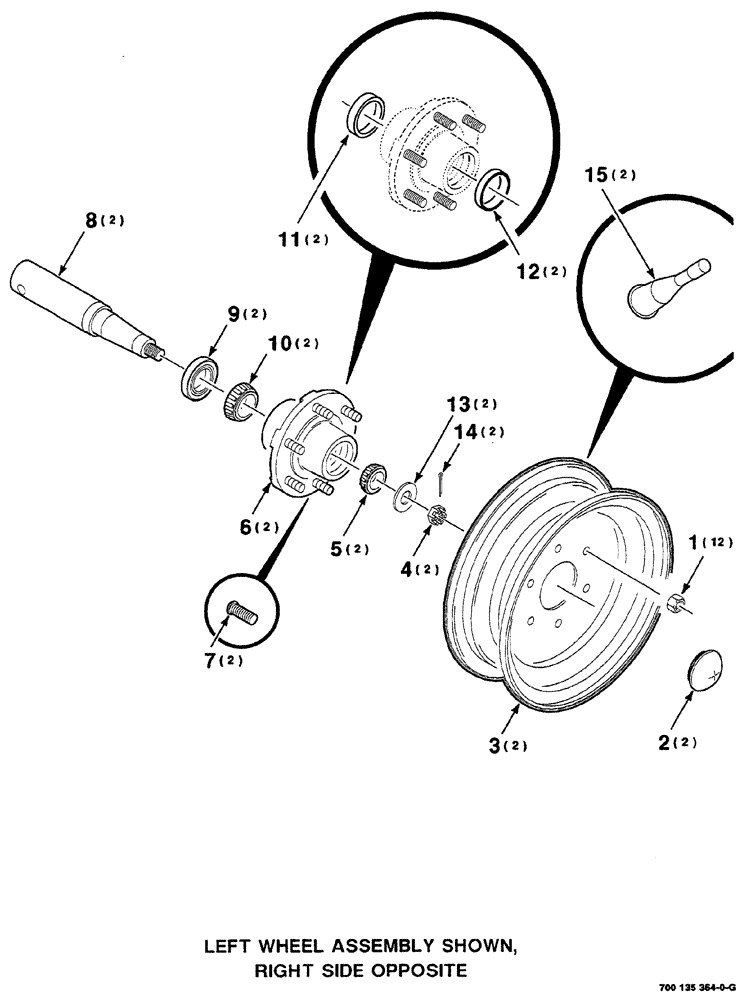

Запчасти Case IH RS561 (07-008) - WHEEL, HUB AND AXLE ASSEMBLY (15 INCH) (12) - MAIN FRAME

1

G49041

WHEEL NUT

wheel, 9/16-18

12шт.

2

518842R1

CAP

hub

2шт.

3

700707982

RIM

WHEEL

2шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SHN GR. 2

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

outer

2шт.

6

700709830

HUB

(Includes: Ref. 7, 11 and 12)

2шт.

7

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

STUD, 9/16-18 x 2.12

2шт.

Part of Ref. 6, part number 700709830

1шт.

8

700135365

SPINDLE

2шт.

9

844050

SEAL

2шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

inner

2шт.

11

663558R1

BEARING CUP

inner

2шт.

Part of Ref. 6, part number 700709830

1шт.

12

651817R1

BEARING CUP

outer

2шт.

Part of Ref. 6, part number 700709830

1шт.

13

26971

WASHER

2шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

15

A38261

VALVE

STEM

2шт.
